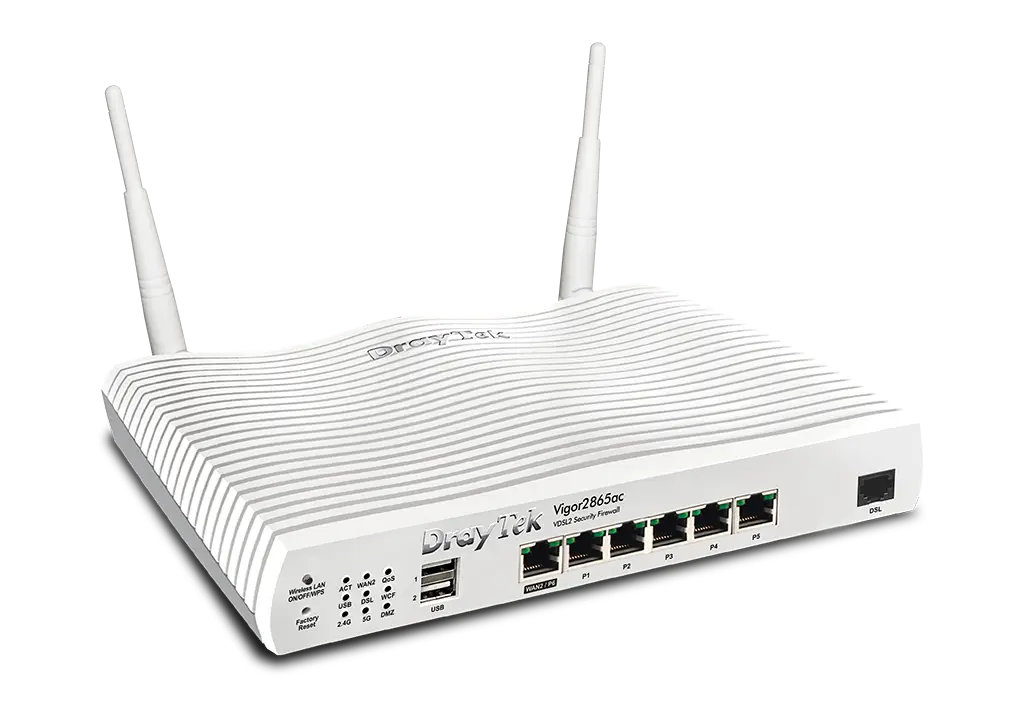

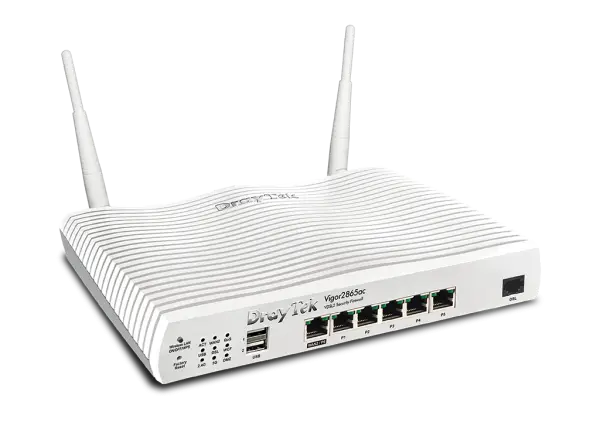

DrayTek Vigor2865ac Model Router

Multi-WAN with 1 x VDSL2 35b Supervectoring / ADSL2+ WAN port, 1 x configurable GbE WAN/LAN port,  2 x USB ports and 2 x Wi-Fi WANs (ac/Vac models)
1 x XDSL port and 1 x configurable GbE WAN/LAN port for Failover, Load Balancing and High Availability mode
2 x USB 2.0 ports for 3G/4G LTE USB modems, FTP server, network printer or thermometer
5 x Gigabit LAN ports with multiple subnets and 60,000 NAT sessions
32 x VPN tunnels (including 16 x OpenVPN/ SSL-VPN tunnels) with most security protocols
Fast VPN throughput, VPN Load Balancing and backup for site-to-site VPN applications
Hardware Acceleration and Hardware QoS for up to 8k NAT and routing connections, and 940Mbps (Single WAN) or 1.3Gbps (Multi-WAN) Firewall speed
16 x VLANs for secure and efficient workgroup management
IPv6 & IPv4
Up to 1022 IP addresses and 8 IP subnets

Integrated IEEE 802.11ax (WiFi 6, AX3000) wireless Access Point; dual band; up to 2402 Mbps throughput (ax model)
Integrated IEEE 802.11ac (AC1300) wireless Access Point; dual band; up to 867 Mbps throughput (ac/Vac models)
High Availability mode
Object-based SPI Firewall and CSM (Content Security Management) for network security
VoIP (2 x FXS ports) for Vigor2865Vac
Supports VigorACS 2 and VigorACS 3 Central Management Software for remote management
SD WAN capability when used with VigorACS 3
Central VPN Management for up to 8 remote Vigor routers Learn More
Central AP Management for up to 20 Vigor Access Points Learn more
Central Switch Management for up to 10 VigorSwitches Learn More
2 years back to base warranty

Multi-WAN VDSL2 35b/Ethernet Security Routers for SMB

Vigor2865ax
802.11ax (WiFi 6, AX3000)

The Vigor2865 series are VDSL2 35b/ADSL2+ security Firewall routers integrating a DSL modem which is compatible with variants of ADSL and VDSL, including profile 35b supervectoring. There is also a configurable Gigabit Ethernet WAN/LAN port for broadband connections to share the traffic load or serve as a Failover connection. A 3G/4G/LTE USB modem can also be attached to the USB ports of the router. The Vigor2865 series includes models with built-in 802.11ax (WiFi 6, AX3000)/ 802.11ac Wi-Fi and a VoIP gateway (Vac model).

VDSL2 35b

Download speed up to 300 Mbps
Up to 6 WANs for ac/Vac models

Load Balancing; NAT throughput up to 800 Mbps
32 x VPN tunnels

IPsec VPN throughput up to 300 Mbps
60k NAT sessions

Recommended for a network of up to 30+ devices

Wireless Antenna (ax/ac/Vac model)
Reset Button
WLAN/WPS Button (ax/ac/Vac model)
LED Indicator

2 x USB 2.0 ports for 3G/4G LTE USB modems, FTP server, network printer or thermometer
GbE LAN/WAN Switchable Port: 1x GbE RJ-45
Fixed LAN Port: 5x GbE RJ-45

2 x VoIP FXS ports (Vac model)
Fixed WAN Port: 1x RJ-11 for VDSL2 35b/ADSL2+
Power On/Off Switch
Power Input

Performance Comparison: Vigor2865 vs. Vigor2862
NAT throughput (1.6 times faster)

800 Mbps
Vigor2865 Series

500 Mbps
Vigor2862 Series

IPsec throughput (3.5 times faster)

300 Mbps
Vigor2865 Series

85 Mbps
Vigor2862 Series

SSL-VPN throughput (2.9 times faster)

130 Mbps
Vigor2865 Series

45 Mbps
Vigor2862 Series

Key Features

Hotspot Web Portal

Market your business and communicate with guests by offering hospitality Wi-Fi. Learn more

Wireless WAN (ac/Vac models only)

Get Internet access wirelessly from a Wi-Fi network, a mobile hotspot, or a personal hotspot set up on smartphones. Learn more

Bandwidth Management

Prevent one device using all the bandwidth with bandwidth limit policy, session limit policy, and QoS settings.

Load Balancing

Maximise throughput and reliability by using multiple Internet connections. Learn more

VoIP Friendly

The Vigor2865 Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless. Setup Guide

35b Supervectoring Modem

Integrated VDSL modem, supporting VDSL2 profile 35b supervectoring.

Central AP Management

Use the Vigor2865 router as a wireless controller to maintain and monitor VigorAPs. Learn more

VPN (Virtual Private Network)

Build a secure and private tunnel from the LAN of the Vigor2865 Series to remote offices and teleworkers over the Internet. Learn more

WiFi 6 (ax model only)

Feature OFDMA and MU-MIMO technology to improve WiFi efficiency and deliver higher wireless speed.

SSL VPN

SSL VPNs work through firewalls providing secure remote access to any network environment. Learn more

Mesh (Wireless model only)

Easily link to other VigorAP to expand the wireless network. Learn more

Firewall & Content Filter

Filter web pages by URL keywords or web category to block access to insecure or inappropriate content.

Central Switch Management

Set up VLANs easily from the router and get a centralised hierarchy view of the switches. Learn more

DrayDDNS

Free DDNS service to access the router using a fixed hostname of your choice. Learn more

Hardware Acceleration
Without sacrificing traffic control features such as QoS, Bandwidth Limit, WAN Budget, Traffic Graph and Data Flow Monitor, Hardware Acceleration enhances performance for:
NAT & routing connections
QoS
IPsec VPN

Hardware NAT & Routing
With Hardware Acceleration and Hardware QoS enabled, the router supports up to 8k NAT and routing connections, and firewall performance reaching 940Mbps on single WAN and 1.3Gbps combined performance on multi-WANs.

Dual WAN (Ethernet + xDSL)
1.6x Faster NAT Performance

1.3 Gbps
with Hardware NAT & Routing

800 Mbps
without Hardware NAT & Routing

Single Ethernet WAN
1.3x Faster NAT Performance

940 Mbps
with Hardware NAT & Routing

800 Mbps
without Hardware NAT & Routing

Hardware QoS

Hardware QoS allows prioritization of applications and services on DrayTek routers, to improve performance of critical applications such as VoIP, conferencing and video streaming, etc. Furthermore, it allows flexible bandwidth allocation to suit business requirements.

Dual WAN (Ethernet + xDSL)
1.6x Faster QoS Performance

1.3 Gbps
with Hardware QoS

700 Mbps
with Software QoS

Single Ethernet WAN
1.3x Faster QoS Performance

940 Mbps
with Hardware QoS

700 Mbps
with Software QoS

Hardware IPsec
While the Vigor2865 series already has improved IPsec performance over the previous Vigor2862 series, with Hardware Acceleration enabled, IPsec performance can now reach 800 Mbps. The first 16 tunnels are automatically accelerated on a first come first serve basis. If any drops out, a new tunnel will be put into the accelerator automatically to top off 16 accelerated tunnels.

2.8x Faster IPsec Performance

800 Mbps
with Hardware IPsec

300 Mbps
with Software IPsec

APP QoS
Application QoS allows prioritisation of applications and services on DrayTek routers to improve and enhance critical applications such as VoIP, conferencing and video streaming, etc. It also allow flexible bandwidth allocation to suit business requirements.

VoIP First
VoIP is always a top priority! The default VoIP port, UDP 5060 (configurable) has priority out-of-box with QoS.

Improve Experience for Business-Critical Apps
Select your business critical apps, and easily put them into QoS classes.

Flexible Bandwidth Allocation
Bandwidth will be reserved for high-priority classes, and can be used by low-priority classes when available.

Learn More

Hotspot Web Portal
Market your business while offering free Wi-Fi

Wi-Fi Marketing
Redirect hotspot guests to the company homepage, online surveys, or display a promotion message.
Grow Customer Mailing List
Require guests to leave contact info or social media accounts before they can use the Internet services.

Various Authentication Types
A variety of login methods are supported to meet your business needs, including Facebook Login, Google Login, SMS PIN, Voucher PIN, and RADIUS.
3rd-Party Service Compliant
Supports external captive portal authentication so you can keep using the Wi-Fi marketing solution you prefer.
Data Quota Management
Bandwidth management is integrated into the Hotspot features to control the bandwidth and session usage of the Hotspot guests.

New OFDMA Feature for 802.11ax (WiFi 6) – Vigor2865ax only
Higher Transmission Efficiency with OFDMA
OFDMA has been used in LTE for many years, and is now available in 802.11ax for multi-user mode.
With legacy OFDM, each frame is transmitted across the entire channel width. When the transmission rate is low, this causes more latency and jitters and lower the overall efficiency.
OFDMA splits a single frame into groups of subcarriers, and each subcarrier can be sent simultaneously. With multiple access mode, it allows multiple users to transmit at the same time thus improving efficiency and enhancing user experiences in high density environments.
OFDM

OFDMA

802.11ax (WiFi 6) Downlink & Uplink MU-MIMO (Vigor2865ax only)

802.11ax (WiFi 6) BSS Colouring (Vigor2865ax only)
In traditional 802.11 Wi-Fi networks, access points are designed to wait and take turns if other signals of the same frequency are detected from adjacent access points. This sharing of a resource, in this case radio frequencies, is called a basic service set (BSS). 802.11ax adds Colouring to the BSS information being broadcast so that APs can use the same channel at the same time without having to take turns. This increases Wi-Fi efficiency, particularly in high density environments.
In the diagram here, AP1 and AP4 are using Channel 1 simultaneously, which normally means they would have to take turns if transmitting information at the same time. However, using BSS Colouring, the 2 APs can now transmit simultaneously without waiting.
An 802.11ax AP using BSS Colouring has the ability to change its BSS Colour if it detects another AP using the same BSS Colour on the same frequency.

AP-Assisted Roaming – built-in in selected Wi-Fi Vigor Routers and all Vigor Access Points

Extend Transmission Range
When a Wi-Fi client moves out of its effective transmission range which is defined by the Basic Rate and/or Received Signal Strength threshold, the AP forces the Wi-Fi client to pick up a nearby access point with stronger signals thereby extending the range.

Improve Data Rates
When the “Minimum RSSI with Adjacent AP” option is set, APs or routers on the same local subnet will exchange client information with each other and switch to the AP or router that has the strongest signal, ensuring that data rates can be as good as possible.

Better User Experience
Instead of ineffective transmission with low basic rates or RSSI, the better links provide better user experience while saving the airtime.

No Controller Required
Assisted Roaming is a built-in feature in all Vigor Access Points and a number of Wi-Fi routers; it saves the need for an ad-hoc wireless controller and is an ideal solution for simple network deployments.

Management Solution
All-in-One Management
Mesh (ac model)
Up to 7 APs
Central Switch Management
Up to 2 Switches
Central AP Management
Up to 2 APs
Discovery
Provisioning
Monitoring
Centralised Hierarchy View
Auto-Discovery
Provisioning
Monitoring
Centralised Hierarchy View
Reboot PoE Devices Remotely
Quick VLAN Configuration
Auto-Discovery
Auto-Provisioning
Monitoring
Centralised View
Alarm
Reboot VigorAP Remotely
Wi-Fi Client Load Balancing

Software Management
VigorACS 2
VigorACS 3
Provisioning
Monitoring
Centralised Hierarchy View
Alarm
Reboot Vigor Devices Remotely
Scheduled Maintenance
Report
Zero Touch Deployment & Provisioning
Auto VPN
Interface Quality & SLA
VoIP Optimization & Monitoring
Application Visibility
Application Based SD-WAN Policy
Customized Hotspot Page with Multilingual
Hotspot Clients Analytics
ACS Server Load Balancing / Failover

In-the-Box

Vigor2865/ax/ac/Vac

Antenna x 2
(ax/ac/Vac model)

RJ-45 Cable
(Ethernet)

RJ-11 to RJ-11 Cable
(Annex A)

Power Adaptor

Quick Start Guide

Note :
The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
