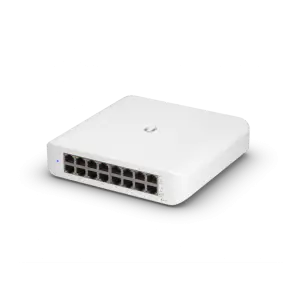

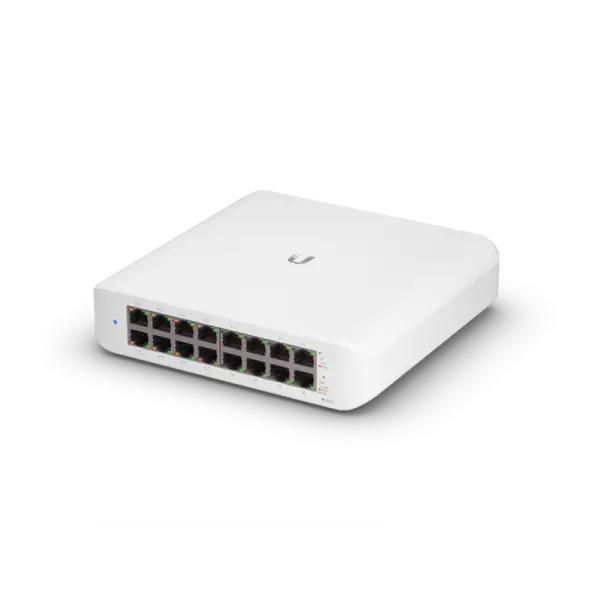

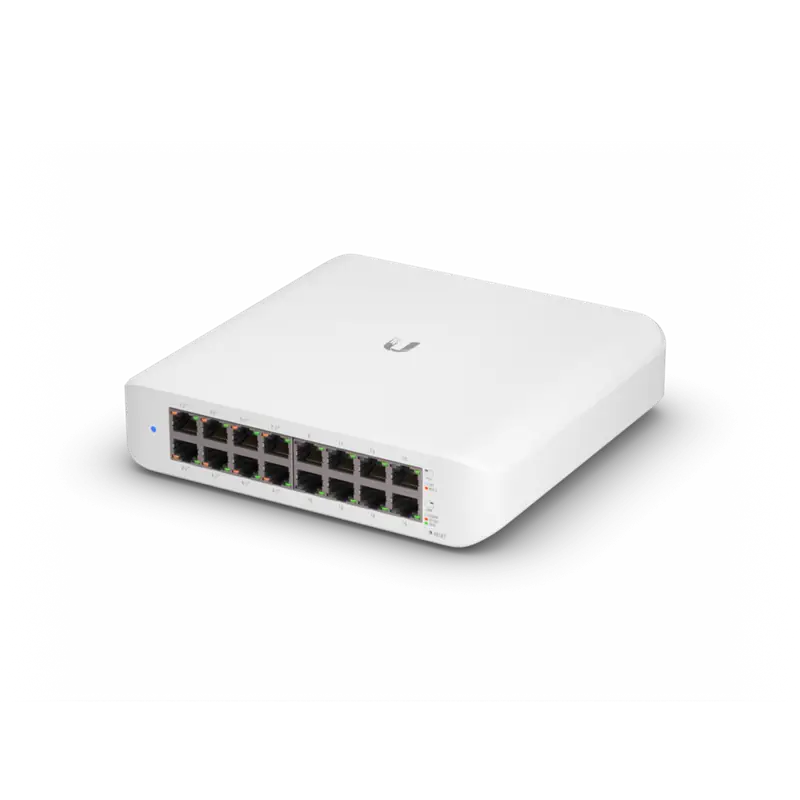

Ubiquiti UniFi Switch Lite 16 PoE Layer 2 switch

DESCRIPTION

Lite 16 PoE

A wall-mountable, 16-port, Layer 2 PoE switch with a fanless cooling system.

(8) GbE PoE+, (8) GbE ports

45W total PoE availability

Wall mountable

Compact Versatility

The Switch Lite 16 PoE is a fully managed switch with (16) GbE RJ45 ports, including (8) 802.3at PoE+ ports, and a 45W total PoE supply for your UniFi access points and other PoE devices. The USW Lite 16 PoE also offers an extensive suite of Layer 2 switching protocols, and can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

45W PoE Availability

Equipped with GbE PoE+ ports, the Lite 16 PoE provides a total power budget of 45W. This allows seamless integration of PoE-enabled devices such as UniFi access points and IP cameras, simplifying your network setup.

Flexible Mounting Options

The Lite 16 PoE’s compact, wall-mountable design allows for flexible installation in various settings.

Deployment

Technical Specs

Mechanical

Dimensions

192 x 185 x 44 mm (7.6 x 7.3 x 1.7″)

Weight

1.2 kg (2.6 lb)

Enclosure material

Polycarbonate

Hardware

Management interface

Ethernet In-Band

Networking interface

(16) GbE RJ45 ports

PoE interface

(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total non-blocking throughput

16 Gbps

Switching capacity

32 Gbps

Forwarding rate

23.808 Mpps

Power method

Universal input, 100—240V AC

Power supply

AC/DC, internal, 60W

Max. power consumption

15W (Excluding PoE output)

Total available PoE

45W

Max. PoE wattage per port by PSE

PoE+: 30W

Button

Factory reset

Ambient operating temperature

-15 to 40° C (5 to 104° F)

Ambient operating humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 features

IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs

Layer 3 features

–

LEDs

System

Status

Ethernet

PoE
Speed/link/activity

PoE

Link/activity

Application Requirements

UniFi Network

Version 7.2.94 and later

Important Warranty Information:
•2-Year Warranty: Current promotion running from March to December 2024, all Ubiquiti items purchased during this period come with 2-year warranty.
•For items purchased outside the specified period (March to December 2024), the standard Manufacturer’s warranty duration is 1 year.

Ubiquiti Lite 16 PoE

SKU:USW-Lite-16-POE

Description: A wall-mountable, 16-port, Layer 2 PoE switch with a fanless cooling system.

Tech Specs: Click Here
Installation Guide: Click Here

Features:
•(8) GbE PoE+, (8) GbE ports
•45W total PoE availability
•Wall mountable
