Ubiquiti UniFi Gateway

DESCRIPTION

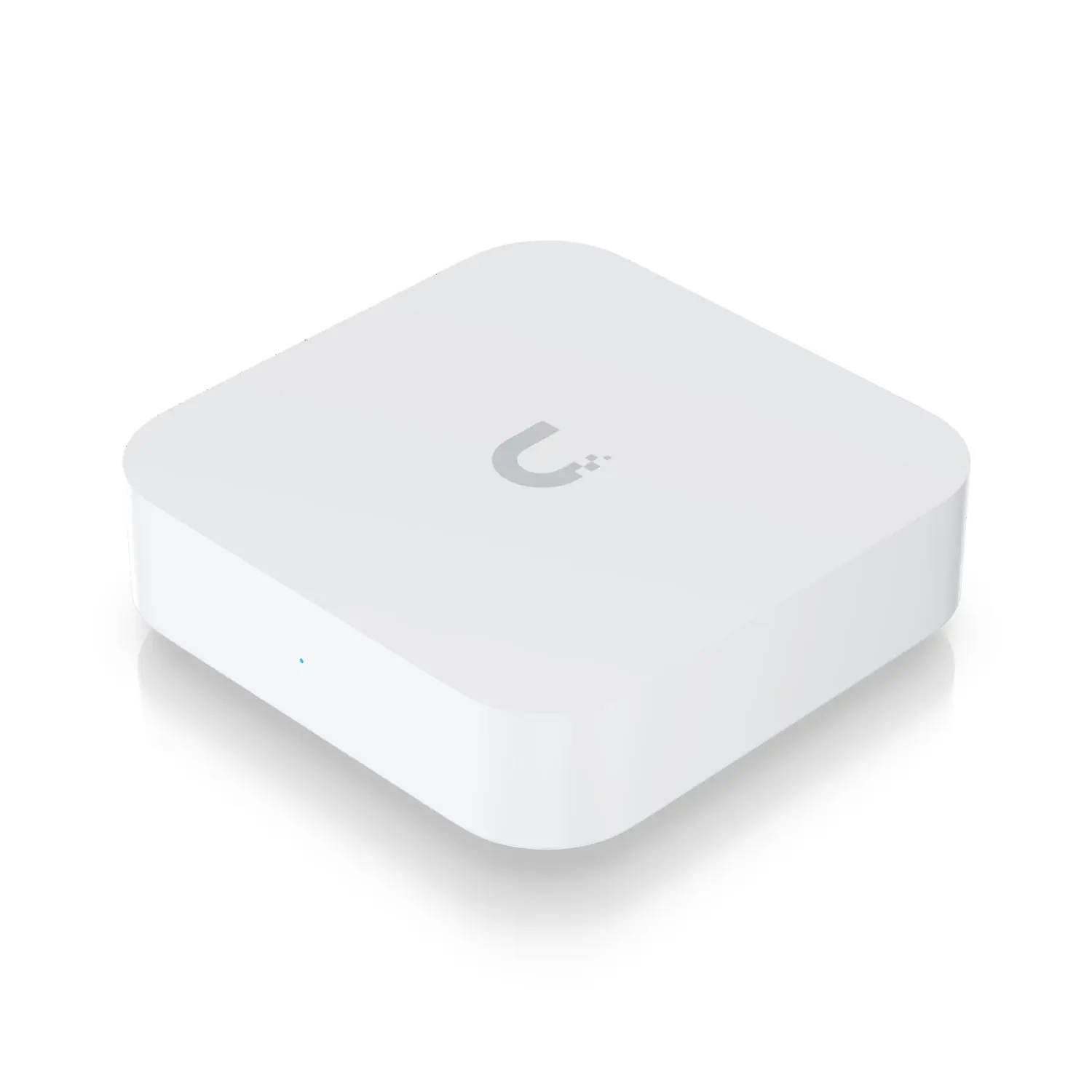

Gateway Lite
Compact independent gateway with a full suite of advanced routing and security features.
Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues)
Managed by a CloudKey, Official UniFi Hosting, or UniFi Network Server with UniFi Network 8.0.7 and later
(1) GbE WAN port
(1) GbE LAN port
Compact footprint
USB-C powered (adapter included)
Advanced Security Features
Protect your network with application-aware firewall rules and signature-based IPS/IDS threat detection. These advanced capabilities provide next-generation security.

Energy-Efficient Operation
Powered via a USB-C adapter, the Gateway Lite combines functionality with energy efficiency.

Deployment

Build Features
The Ubiquiti Gateway Lite offers a sleek and minimal form factor, ideal for modern spaces. Its small size ensures it fits seamlessly into home or office environments.

Technical Specs
Mechanical
Dimensions
98 x 98 x 30 mm (3.9 x 3.9 x 1.2″)
Weight
320 g (11.3 oz)
Enclosure material
Polycarbonate
Hardware
Processor
Dual-core ARM® Cortex®-A53 at 1 GHz
Memory information
1 GB DDR3L
Management interface
Ethernet
Bluetooth 5.1
Networking interface
LAN: (1) GbE RJ45 port
WAN: (1) GbE RJ45 port
IDS/IPS throughput
1 Gbps**Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation.
Power method
USB type C (5V/3A)
Supported voltage range
100–240V
Max. power consumption
3.83W
Ambient operating temperature
-10 to 40° C (14 to 104° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Gateway Features
Performance
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Internet quality and outage reporting
Next-generation security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking
License-free SD-WAN*
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport* and Identity Enterprise VPN**
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IPv6 ISP support
*When paired with a CloudKey or Official UniFi Hosting.
**When paired with a CloudKey.
Application Requirements
UniFi Network
Version 8.0.7 and later

Important Warranty Information:•2-Year Warranty: Current promotion running from March 2024, all Ubiquiti items purchased during this period come with 2 years warranty.
•For items purchased outside the specified period (Before March 2024), the standard Manufacturer’s warranty duration is 1 year.

Ubiquiti Gateway Lite

SKU:UXG-Lite

Description:
A compact and powerful UniFi gateway with a full suite of advanced routing and security features

Tech Specs: Click Here
Installation Guide: Click Here

Features:
•Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues)
•Managed with a Cloud Key, Official UniFi Hosting, or UniFi Network Server
•(1) GbE WAN port
•(1) GbE LAN port
•Compact footprint
•USB-C powered
