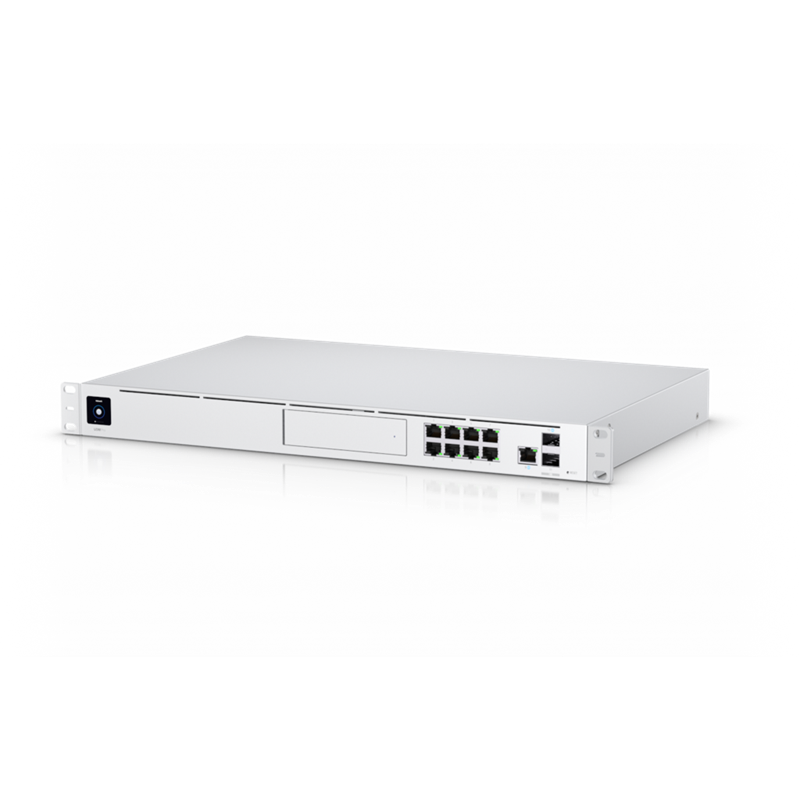

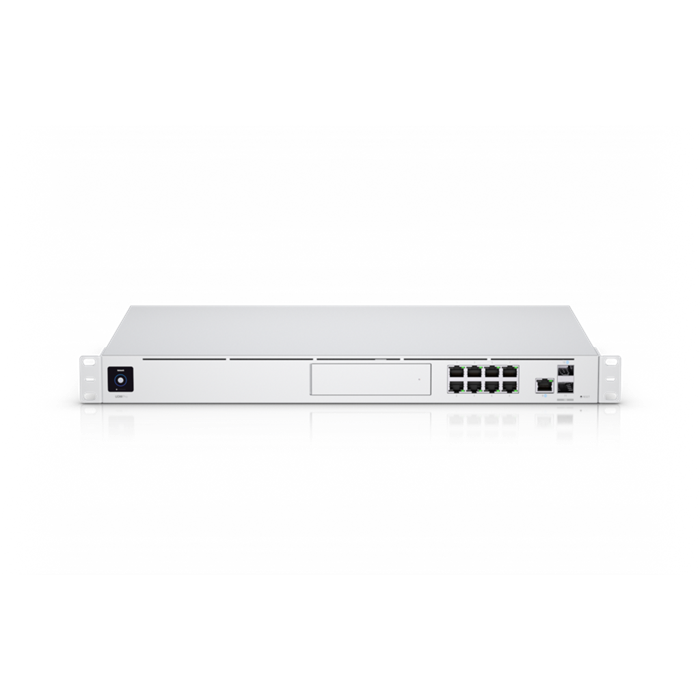

Ubiquiti UniFi Dream Machine Pro

DESCRIPTION

Dream Machine Pro

The Dream Machine Pro (UDM Pro) is an enterprise-grade UniFi OS Console that offers a scalable networking experience and comprehensive platform for multi-application use.

The UDM Pro is an all-in-one networking console that runs every UniFi OS application, like Network and Protect. It features a built-in security gateway, 10G SFP+ WAN support, an 8-port Gigabit switch, and network video recorder that supports compatible 3.5″ hard disk drives (HDDs).

Features:

• Runs every UniFi OS application, including the pre-installed UniFi Network
• 8-port switch with 1GbE RJ45 and 10G SFP+ ports
• Integrated security gateway and UniFi Protect-ready network video recorder that supports compatible 3.5″ HDDs
• Enterprise-class internet threat management, deep packet inspection, and WiFi AI functionality
• Powered by a fast, 1.7 GHz quad-core processor
• 1U-sized, rack-mountable console
• Allows you to easily scale your deployment by connecting additional UniFi devices

The Best Experience for Large Networks

All-in-one 1U rack appliance for small to medium size businesses

Security
Gateway

Managed
Switch

UniFi
Network

UniFi
Protect

Advanced
Redundancy

The enterprise-class security gateway combines routing, 10 Gbps SFP+ WAN, application visibility, VPN services, and 3.5 Gbps full threat management throughput into a single device.

10 Gbps
SFP+ WAN

Advanced
Firewall with VPN

DPI: Deep
Packet Inspection

IPS/IDS – Intrusion
Prevention System

3.5 Gbps IDS/IPS
Throughput

UniFi Enterprise Architecture Evolves with UniFi OS

The new UniFi OS portal provides streamlined access to all of your UniFi OS consoles and applications.

Network
Application

Protect
Application

Access
Application

Talk
Application

UniFi Cloud Portal

Launch all current and upcoming applications from a single view with simple access.

Safe Access with SSO

Single Sign-On (SSO) authentication streamlines safe access to UniFi applications.

Centralized User and Access Management

Admins easily manage users in one central location.

Installation of New Applications

Install new UniFi apps and maintain them with a single click through the settings page.

Seamless Network Integration

Use the UniFi Dream Machine Pro to build, centralize, and manage your network.

Specifications

TECHNICAL

Interfaces

(8) 10/100/1000 RJ45 LAN Ports
(1) 10/100/1000 RJ45 WAN Port
(1) 1/10G SFP+ LAN Port
(1) 1/10G SFP+ WAN Port

Management Interfaces

Ethernet In-Band
(1) Bluetooth BLE

Power

Max. Power Consumption

33W

Voltage Range

100 to 240VAC

Power Method

(1) Universal AC Input, 100-240VAC, 50/60 Hz

Redundant Power

(1) RPS DC Input

Power Supply

Internal 50W/12V

ESD/EMP

Protection: Air: ± 16 kV
Contact: ± 12 kV

Technical Information

IDS/IPS Throughput

3.5 Gbps3

Processor

Quad ARM Cortex-A57 Core at 1.7 GHz

System Memory

4 GB DDR4

On-Board Flash Storage

16 GB eMMC

Environment

Operating Temperature

10° to 40° C

Operating Humidity

5 to 95% Noncondensing

DIMENSIONS

Width x Height x Depth

442.4 x 43.7 x 285.6 mm

Weight

3.90 kg
3.99 kg With Mounting Kit

Certifications

CE, FCC, IC

PACKAGE CONTENTS

(2) Rackmount Brackets
(8) Bracket Screws
(4) Mounting Screws
(4) Cage Nuts
(1) Security Screw
(4) 2.5″ HDD Screws
Power Cord
(4) Rubber Feet

Important Warranty Information:•2-Year Warranty: Current promotion running from March 2024, all Ubiquiti items purchased during this period come with 2 years warranty.
•For items purchased outside the specified period (Before March 2024), the standard Manufacturer’s warranty duration is 1 year.

Ubiquiti Dream Machine Professional

SKU; UDM-Pro

Description:Enterprise-grade, rack-mount UniFi Cloud Gateway with full UniFi application support, 10 Gbps performance, and an integrated switch.

Tech Specs: Click Here
Installation Guide: Click Here

Features:
•Includes full UniFi application suite for device management
•3.5+ Gbps routing with IDS/IPS
•(1) 10G SFP+*, (8) GbE RJ45 LAN ports
•(1) 10G SFP+*, (1) GbE RJ45 WAN ports
•1.3″ touchscreen
•3.5″ NVR HDD bay
•*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
