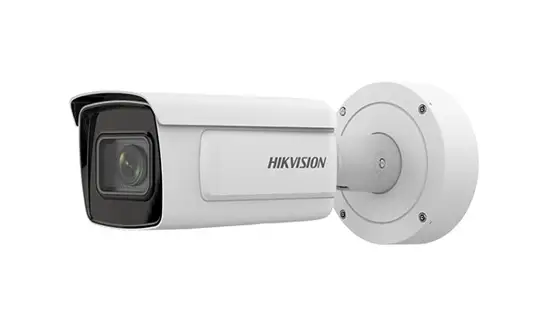

Hikvision iDS-2CD7A46G0-IZHSY(C) 4MP Bullet 2.8-12mm

$1,190.80

2 products sold in last 20 hours
Selling fast! Over 4 people have in their cart
HIKVISION IDS-2CD7A46G0-IZHSY(C) 4MP BULLET 2.8-12MM
27 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 114-484-M2 Categories: , Brand:

4MP DeepinView Moto Varifocal Bullet Camera

  • High quality imaging with 4MP resolution
  • Excellent low-light performance via DarkFighter technology
  • Clear imaging against strong back light due to 140 dB WDR technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • 5 streams to meet a wide variety of applications
  • Water and dust resistant (IP67) and vandal proof (IK10)

Camera

  • Image Sensor1/1.8″ Progressive Scan CMOS
  • Max. Resolution2688 × 1520
  • Min. Illumination

    Color: 0.0005 Lux @ (F1.2, AGC ON);

    B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

  • Shutter Time1 s to 1/100,000 s
  • Day & Night

    IR cut filter

    Blue glass module to reduce ghost phenomenon

Lens

  • Focal Length & FOV

    2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

    8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

  • FocusAuto,Semi-auto,Manual
  • Iris TypeP-iris
  • Aperture

    2.8 to 12 mm: F1.2 to F2.5

    8 to 32 mm: F1.7 to F1.73

DORI

  • DORI

    Wide:

    2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m

    8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 m

    Tele:

    2.8 to 12 mm: D (Detect): 149 m, O (Observe): 59.1 m, R (Recognize): 29.8 m, I (Identify): 14.9 m

    8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m

Illuminator

  • Supplement Light TypeIR
  • Supplement Light Range

    2.8 to 12 mm: 50 m

    8 to 32 mm: 100 m

  • Smart Supplement LightYes
  • IR Wavelength850 nm

AI Open Platform

  • Model Specification

    Up to 4 models,

    Model type: detection model, classification model, mixed model (detection model and classification model)

Video

  • Main Stream

    50 Hz:

    25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

    50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    60 Hz:

    30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

    60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Third Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

  • Fourth Stream

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Fifth Stream

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 30 fps (704 × 480, 640 × 480)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264,

    Fourth stream: H.265/H.264/MJPEG,

    Fifth stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions for each stream
  • Target CroppingYes
  • e-PTZSupport Patrol and Auto Tracking settings

Audio

  • Audio TypeMono sound
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes

Network

  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
  • Network Storage

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


  • Image Parameters SwitchYes
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
  • Wide Dynamic Range (WDR)140 dB
  • Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
  • SNR≥ 52 dB
  • Privacy Mask8 programmable polygon privacy masks
  • Image StabilizationEIS
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface

  • Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
  • Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
  • AudioWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
  • Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset KeyYes
  • Power OutputWith -Y: 12 VDC, max. 100 mA

Event

  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection
  • Smart Eventscene change detection,audio exception detection,defocus detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function

  • Perimeter Protection

    Line crossing, intrusion, region entrance, region exiting

    Support alarm triggering by specified target types (human and vehicle)

    Support combined event alarm triggering

  • Queue Management

    Supports up to 8 detection regions, and independent arming schedule and linkage method

    Supports 2 detection modes: regional people queuing-up, waiting time detection

    Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

    Supports raw data export for further analysis

    Supports real-time data uploading and scheduled data uploading

    Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

    Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

  • Heat Map

    A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

    Two report types are available, space heat map and time heat map line chart.

  • Hard Hat Detection

    Detects up to 30 human targets simultaneously

    Supports up to 4 shield regions

  • MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection
  • Regional People Counting

    Supports up to 8 detection regions, and independent arming schedule and linkage method

    Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection

    Supports parameter settings: alarm times per exception, alarm interval, first alarm delay

    Supports searching real-time number of people

    People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading

    Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)

    Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

  • On/Off Duty Detection

    Supports up to 8 detection regions, and independent arming schedule and linkage method

    Supports 2 detection modes: absence detection, on/off duty detection

    Supports parameter settings: person on duty, absence duration

General

  • Power

    12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block,

    PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W

  • MaterialAluminum alloy body
  • WeightApprox. 1950 g (4.2 lb.)
  • With Package WeightApprox. 3070 g (6.7 lb.)
  • Dimension

    Without -Y: Ø144 mm × 347 mm (Ø5.7″ × 13.7\”)

    With -Y: Ø140 mm × 351 mm (Ø5.5 × 13.8\”)”

  • Package Dimension405 mm × 190 mm × 180 mm (15.9″ × 7.5″ × 7.1″)
  • Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionHeartbeat, mirror, password protection, one-key reset
  • HeaterYes
  • Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces

Approval

  • EMC

    FCC: 47 CFR Part 15, Subpart B,

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7,

    KC: KN32: 2015, KN35: 2015

  • Safety

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

    LOA: IEC/EN 60950-1

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
  • Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
  • Automotive and RailwayEN50121-4
  • OtherPVC FREE
