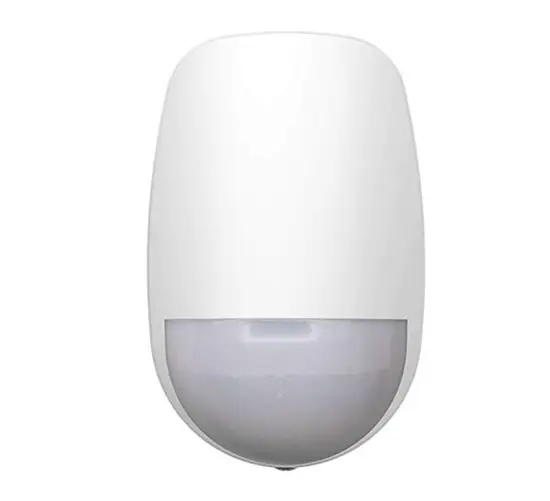

Hikvision DS-PDD12P-EG2-WB AX PRO Wireless Dual-TeCh Det

Wireless Dual-Tech Detector GEN2

• 3D optics including creep-zone protection, full coverage without dead angle
• 24G microwave to prevent wall penetration
• Digital temperature compensation
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission

Detection Performance

• Detection MethodPassive Infrared;Microwave
• Detection Range12m
• Detection Angle85.9°
• Detection Zones52
• Detectable Speed0.3～2m/s
• SensitivityHigh;Auto;Pet
• Pet Immunity30Kg
• White Light Filter6500lux
• Microwave Frequency24GHz(24.15～24.25GHz)
• Digital Temperature CompensationSupport
• Creep Zone ProtectionSupport

Feature

• Digital ProcessingSupport
• Sealed OpticsSupport
• Tamper ProtectionFront;Rear
• Environment Temperature IndicatorSupport
• Signal Strength IndicatorSupport

Interface

• Power SwitchPower Up Enrolling
• LED IndicatorGreen(PIR), Red(Microwave), Blue(Alarm)

Transmission

• Transmission TechnologyTri-X Wireless
• Transmission MethodTwo-Way RF Wireless
• Transmission Frequency433MHz
• Transmission SecurityAES-128 Encryption
• Transmission Range(Free Space)1.2Km
• Frequency HoppingSupport
• Enrolling MethodPower up;Remote ID;QR Code

Electrical Characteristics

• Standard Battery Life

  5 years in work status (being triggered 20 times per day)

• Power SupplyBattery Powered
• Battery TypeCR123A × 2
• Typical Voltage3V

General

• Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity10% to 90%
• Dimension(WxHxD)65.5mm × 103mm × 48.5mm
• 141g
• Mounting Height1.8 to 2.4m
• Mounting MethodWall
• Application ScenarioIndoor
• BracketOptional Wall & Ceiling Accessory
