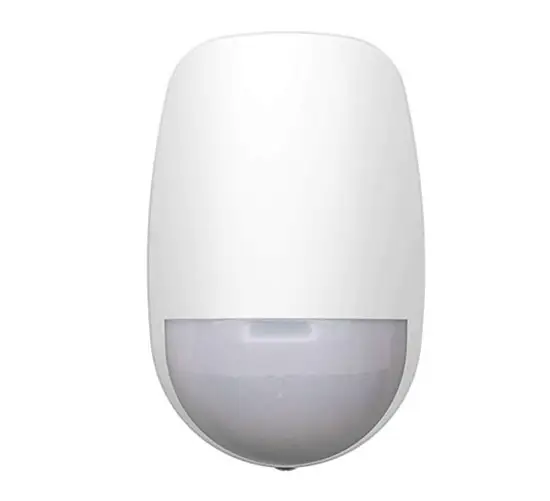

Hikvision DS-PDC15-EG2-WB AX PRO Wireless Curtain PIR

Wireless PIR Curtain Detector GEN2

• Long range with narrow angle detection
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission

Detection Performance

• Detection MethodPassive Infrared
• Detection Range15m
• Detection Angle6.3°
• Detection Zones18
• Detectable Speed0.3～2m/s
• Pet ImmunityNone
• White Light Filter6500lux
• Digital Temperature CompensationSupport
• Creep Zone ProtectionSupport

Feature

• Digital ProcessingSupport
• Sealed OpticsSupport
• Tamper ProtectionFront;Rear
• Environment Temperature IndicatorSupport
• Signal Strength IndicatorSupport

Interface

• Power SwitchPower Up Enrolling
• LED IndicatorBlue(Alarm)

Transmission

• Transmission TechnologyTri-X Wireless
• Transmission MethodTwo-Way RF Wireless
• Transmission Frequency433MHz
• Transmission SecurityAES-128 Encryption
• Transmission Range(Free Space)1.2Km
• Frequency HoppingSupport
• Enrolling MethodPower up;Remote ID;QR Code

Electrical Characteristics

• Standard Battery Life5 years in work status (being triggered 20 times per day)
• Power SupplyBattery Powered
• Battery TypeCR123A × 1
• Typical Voltage3V

General

• Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity10% to 90%
• Dimension(WxHxD)65.5mm × 103mm × 48.5mm
• 128g
• Mounting Height2.4 to 3.6m
• Mounting MethodWall
• Application ScenarioIndoor
• BracketOptional Wall & Ceiling Accessory
