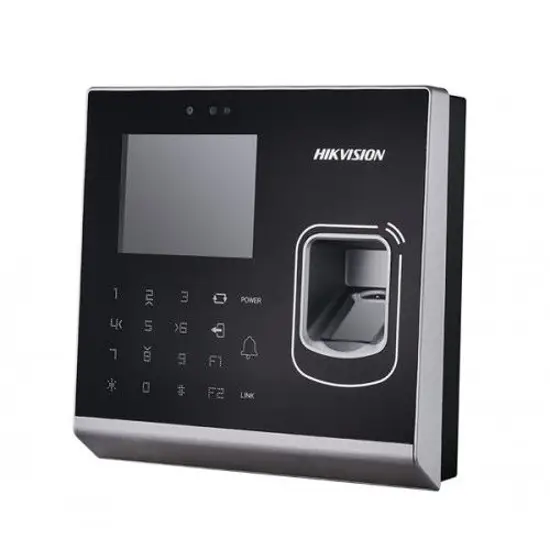

Hikvision DS-KIT201MF-C Biometric AccessControl Terminal

$541.06

12 products sold in last 18 hours
Selling fast! Over 14 people have in their cart
Stand Alone Access Control Terminal with Fingerprint Module
27 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 114-141 Categories: , , Brand:

tand Alone Access Control Terminal with Fingerprint Reader

DS-K1T201 series are optical IP-based fingerprint access control terminal with multiple advanced technologies including fingerprint recognition, face detection, Wi-Fi, smart card recognition, LCD display screen, and picture capturing technology. It is designed with a 2.8-inch LCD display screen and 2MP HD camera. It is equipped with an optical fingerprint recognition module (supporting 1:1 mode and 1:N mode) and supports offline operation.

Supplied with 12VDC Power supply.

Can be programmed via the keypad on the terminal or programmed and managed by iVMS4200 Software.

  • Supports Local activation
  • Supports communicating with 4 control clients simultaneously; Supports uploading real-time events
  • Gets offline events: Avoids events losing
  • Touch mode and blue light display technique for keypad
  • Stand-alone settings for the terminal
  • 2.8-inch LCD display screen to display the time, the date, etc
  • Max. 100,000 valid card No., and Max. 300,000 access control events storage
  • Communication via a wired network (TCP/TP) or Wi-Fi
  • Face detection and picture capturing function implemented by built-in 2MP camera
  • Supports multiple authentication modes (a card, fingerprint, card + fingerprint, card + password, fingerprint + password card + fingerprint + password, and so on)
  • Supports RS-485 and Wiegand (26/34) communication for connecting the external card reader
  • Supports Mifare card reading
  • 2.8-inch LCD display screen to display the time, the date, etc
  • Accurate data and time display provided by a built-in electronic clock and watchdog program to ensure the basic functionality of the terminal
System Parameters
Fingerprint Recognition Duration: 1:1≤1s, 1:3000≤1.5s
Valid Card/ Swiping Record: 100,000 Cards and 300,000 Swiping Card Records
Operation System: Linux
Storage: 256M Storage
FRR (False Rejection Rate): ≤0.01%
FAR (False Accept Rate): ≤0.001%
Card Reading Mode: Supports Mifare card reading, including card No. reading, and sector reading & writing
Fingerprint Recognizer: Optical Fingerprint Recognizer Module
Fingerprint Capacity: Max. 5000 Fingerprints; Up to 10 Local Collected Fingerprint Templates for Each Person
Processor: 32 Bit High-performance Processor
Device Interfaces
Accessible Card Reader: Card Reader
Communication Mode: TCP/IP, Wi-Fi
Output Interface: Lock Relay × 1, Alarm Relay × 1
Transmission Rate: TCP/IP, WIFI: 10/100Mbps Self-adaptive,
RS-485: 19200 bps-N-8-1
Input Interface: Doorbell Button × 1， Door Sensor × 1， Alarm Input × 2， Tamper-Proof Switch × 1， Exit Button × 1
USB Interface: USB2.0
General
LCD Screen: 320×240 LCD-TFT Display Screen
Working Current: ≤500mA
Key Board: 17 Keys
Power Supply: 12VDC
Audio: 1 Buzzer, 1 Loudspeaker
LED Indicator: Power/Status
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H): 137mm × 142mm × 35mm (5.4” × 5.6” × 1.4”)
Weight: 400g (0.88lb)
