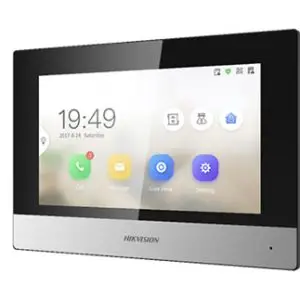

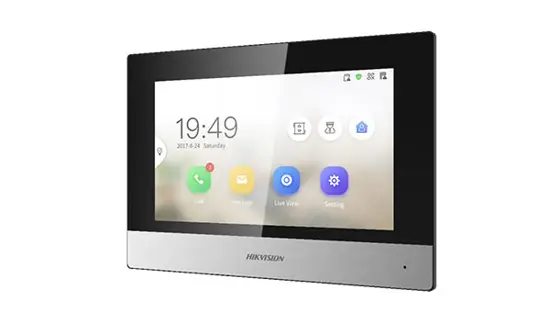

Hikvision DS-KH6320Y-WTE2 2-Wire Room Station Black

$227.50

8 products sold in last 10 hours
Selling fast! Over 10 people have in their cart

Hivision Y-SERIES Two Wire Room Station
7-inch capacitive touch-screen, Wi-Fi
TF card support, max to 128 G
8-ch alarm input, 2 × relay, 1 × RS485
Remote unlocking via the client or APP
Views live videos of door stations and linked cameras
Black fascia
NOTE: Y-SERIES 2-Wire items are not compatible with and cannot be mixed with previous 2-Wire models.

29 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 114-659 Categories: , , Brand:

System Parameters
Operating SystemEmbedded Linux operation system
ROM32 MB
RAM128 MB
CPUEmbedded processor
Display Parameters
Screen Size7-inch
Operation MethodCapacitive touch screen
TypeColorful TFT screen
Resolution1024 × 600
Video Parameters
Lens/
FOV/
WDR/
Resolution/
Focal Length/
Audio Parameters
Audio Compression StandardG.711 U G.711 A
Audio InputBuilt-in omnidirectional microphone
Audio OutputBuit-in loudspeaker
Audio Compression Bitrate64 Kps
Audio QualityNoise suppression and echo cancellation
Volume AdjustmentAdjustable
Capacity
Event Capacity200 captured pictures (with TF card); 200 alarm records
2 MB RAM (without TF card) reserved for events
Linked Network Camera Capacity16
Linked Indoor Extensions Capacity5
Notice Capacity200
Linked Doorphone Capacity17 IP doorphones Max.
Network Parameters
Communication ProtocolTCP/IP, SIP, RTSP
Wired Network10/100 Mbps self-adaptive through 2-wire interface
Wi-Fi StandardWi-Fi 802.11 b/g/n
Bluetooth Version/
3G/4G Standard/
Zigbee/
Device Interfaces
Alarm Input8-ch alarm inputs
TAMPER/
RS-4851
USB/
TF CardMax to 128 G, SD 2.0 or lower version
Alarm Output2 relays (30 V Max.)

Two-Wire IP Interface1
General
Button0
InstallationSurface mounting
Indicator0
Weight327 g
Protective Level/
Power Supply MethodTwo-wire
Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
Working Humidity10% to 90% (no-condensing)
Dimensions200 mm × 140 mm × 23.6 mm (7.87″ × 5.51″ × 0.93″)
Battery/
Power SupplyPowered by KAD704Y or KAD706Y series distributor
Application EnvironmentIndoor
Power Consumption≤ 4 W
LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
