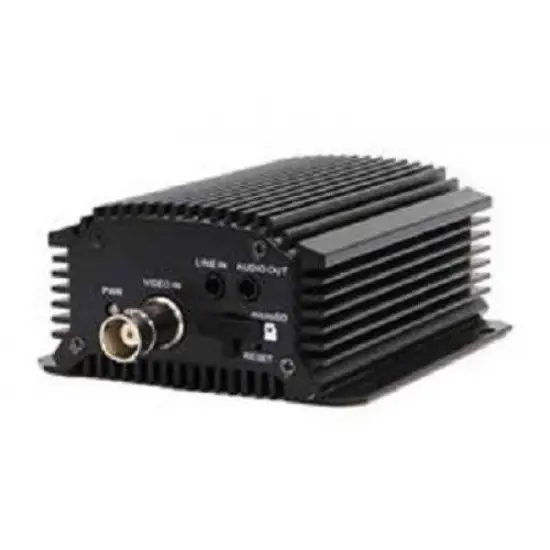

Hikvision DS-6704HWI ENCODER
19 products sold in last 13 hours
Selling fast! Over 12 people have in their cart
4 Channel Encoder
-
WD1/4CIF/2CIF/CIF/QCIF
-
H.264/MPEG4/MPEG2 encoding: 25 fps (P) / 30 fps (N); MJPEG encoding: 15 fps
-
Support multiple network protocols, including IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3, OnVIF, PSIA, SOCKSv4/v5.
-
1 RJ-45 10 M / 100 Mbps adaptive Ethernet interface (PoE)
22 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
FEATURES;
- H.264/MPEG4/MPEG2/MJPEG encoding standards supported
- Up to WD1 real-time encoding
- One PoE network interface for DS-6701/6704HWI models
- Connectable with network HDD in NAS, IPSAN mode
- Support multiple network protocols, including IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ,
- FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3, OnVIF, PSIA, SOCKSv4/v5, etc.;
- Multiple PTZ protocols
SPECIFICATION
| Video/Audio input | ||
|---|---|---|
| Video Compression: | H.264/MPEG4/MPEG2/MJPEG | |
| Video input: | 1-ch, BNC (1.0 Vp-p, 75 Ω) 4-ch, BNC (1.0 Vp-p, 75 Ω) |
|
| Audio compression: | G.711 | |
| Audio input: | 1-ch, 3.5mm interface (2.0 Vp-p, 1 kΩ) 4-ch, Line input interface (2.0 Vp-p, 1 kΩ) |
|
| Two-way audio: | 1-ch, 3.5 mm audio (2.0 Vp-p, 1 kΩ) | |
| Video/Audio output | ||
| Audio output: | 1-ch, 3.5mm interface (Linear, 600 Ω) | |
| Encoding resolution: | WD1/4CIF/2CIF/CIF/QCIF | |
| Frame rate: | H.264/MPEG4/MPEG2 encoding: 25 fps (P) / 30 fps (N); MJPEG encoding: 15 fps | |
| Video bit rate: | 32 Kbps ~ 3072 Kbps, or user defined (Max. 8192 Mbps) | |
| Audio bit rate: | 64 Kbps | |
| Dual Stream: | Support | |
| Stream Type: | Video/ Video & Audio | |
| Network protocols | ||
| Protocols Supported: | IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, hkDDNS, NTP, RTSP, RTP/RTCP,TCP, UDP, IGMP, ICMP,DHCP, ARP, SOCKSv4/v5, PSIA, OnVIF, HIKCGI, netFilter |
|
| Data storage | ||
| Type: | NAS, IPSAN, microSD | |
| Capacity: | Up to 4 TB capacity for each disk, and 32GB for microSD storage | |
| External interface | ||
| Network interface: | 1 RJ-45 10 M / 100 Mbps adaptive Ethernet interface (PoE) |
|
| Serial interface: | 1 RS-485 1 RS-485, 1 RS-232 |
|
| Alarm in: | 1 4 |
|
| Alarm out: | 1 2 |
|
| General | ||
| Power supply: | 12 VDC, or PoE | |
| Consumption: | ≤ 6W ≤ 8W |
|
| Working temperature: | -10°C~+55°C(14°F~131°F) | |
| Working humidity: | 10%~90% | |
| Dimension(W×D×H): | 80 × 39 × 90 mm 114 × 48 × 128 mm |
|
| Weight(without HDD): | ≤ 0.5 Kg ≤ 1 Kg |
|
