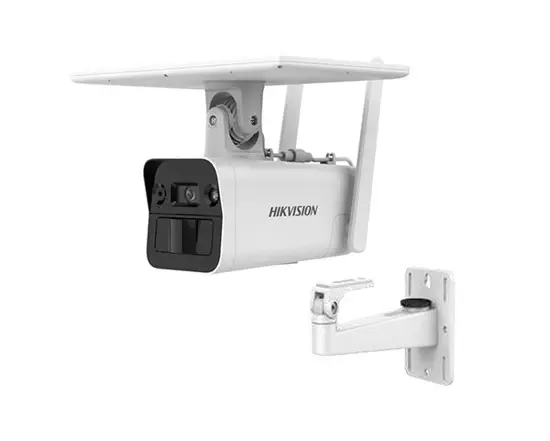

Hikvision DS-2XS2T41G1-ID/4G 4MP Mini Solar Camera 4mm

$608.40

20 products sold in last 8 hours
Selling fast! Over 2 people have in their cart
HIKVISION DS-2XS2T41G1-ID/4G 4MP MINI SOLAR CAMERA 4MM
28 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 114-664 Categories: , Brand:

Hikvision DS-2XS2T41G1-ID/4G 4MP Mini Solar Camera 4mm High quality imaging with 4MP resolution
PIR + Radar Dual Detection
Standalone with solar panel and built-in battery
Supports human and vehicle detection
Provides real-time security via built-in two-way audio
Water and dust resistant (IP67)
Supports 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication
Solar powered & 4G connection
• Solar panel 6.5W, built-in battery 50WH
• 4G SIM card ready for data transmission (SIM card not included)
• Working mode: standby mode by default, and up to 10 days without sunlight. Proactive mode supports up to 1.5 days.
• 256GB SD Card supported (not included)
• 4GB eMMC built-in storage included
• 30m IR
• Includes wall bracket and pole mount clamps

Camera

  • Image Sensor1/3″ Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationB/W: 0.01 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentSolar panel: tilt: -45° to 45°, rotate:-30° to 30°

Lens

  • Lens TypeFixed focal lens, 4 and 6 mm optional
  • Iris TypeFixed
  • Aperture4mm: F1.28, 6mm: F1.6
  • Depth Of Field

    4 mm: 2.7 m to ∞

    6 mm: 5.9 m to ∞

  • Focal Length & FOV

    4 mm, Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

    6 mm, Horizontal FOV: 49°, Vertical FOV: 26°, Diagonal FOV: 57°

  • Lens MountM12

DORI

  • DORI

    4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

    6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m

Illuminator

  • Supplement Light TypeIR
  • Supplement Light RangePerformance mode: up to 30 m, proactive mode: up to 10 m
  • IR Wavelength850 nm
  • Smart Supplement LightYes

Video

  • Main Stream

    50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265/ H.264,

    Sub-stream: H.265/H.264/MJPEG,

    H.264+ and H.265+: main stream supports under performance mode

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Region Of Interest (ROI)1 fixed region for main stream
  • Scalable Video Coding (SVC)H.264 and H.265 encoding

Audio

  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network

  • SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
  • ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • Network StorageAuto Network Replenishment (ANR)
  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

    Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication

  • SIM Card TypeMicro SIM
  • Uplink And Downlink Data RateCat 4, uplink: 50 Mbps, downlink: 150 Mbps
  • Frequency

    EU:

    LTE-TDD: B38/B40/B41

    LTE-FDD: B1/B3/B5/B7/B8/B20/B28

    WCDMA: B1/B5/B8

    GSM: B3/B5/B8

    LA:

    LTE-TDD: B38/B40

    LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66

    WCDMA:B1/B2/B3/B4/B5/B8

    GSM: B2/B3/B5/B8

  • StandardLTE-TDD,LTE-FDD,WCDMA,GSM


  • SNR≥ 52 dB
  • Wide Dynamic Range (WDR)Digital WDR
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Image EnhancementBLC,HLC,3D DNR
  • Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Transducer

  • Transducer TypePIR + Radar
  • Detection Angle4 mm : Horizontal: 80°, vertical: 42°,6 mm：Horizontal: 50°, vertical: 22°
  • Detection RangeUp to 12 m

Interface

  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage

    Built-in eMMC storage, up to 8 GB,

    Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 5 GB is available for recording.

  • Built-In MicrophoneYes
  • Built-In SpeakerYes
  • Reset KeyYes

Event

  • Basic EventMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
  • Linkage

    Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning

General

  • Power

    Power Consumption and Current:

    Typical power scenarios: 1.85 W (4G working)

    Standby scenarios: 80 mW

    Max. power consumption: 7 W

    Power Supply:

    12 VDC

    *For debugging only

    6.5 W (deviation: ± 1 W) Solar panels

    Power Interface:

    Power supply interface: Ø5.5 mm coaxial power plug

    Extened solar panel: Ø5.5 mm coaxial power plug

  • MaterialPlastic
  • Storage Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionHeartbeat,mirror,flash log
  • Startup And Operating Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
  • Dimension213.7 mm × 292.4 mm × 188.7 mm (8.4″ × 11.5″ × 7.3″)
  • Package Dimension345 mm × 240 mm × 292 mm (13.6″ × 9.4″ × 11.5″)
  • Weight

    Approx. 1.42 kg (3.1 lb.)

  • With Package Weight

    Approx. 2.07 kg (4.6 lb.)

Battery

  • Battery TypeTernary Lithium
  • Capacity51.46 Wh
  • Max. Charging Voltage12.6 V
  • Operating Temperature

    Charging: 0 °C to 45 °C (32 °F to 113 °F)

    Discharging: -20 °C to 50 °C (-4 °F to 122 °F)

  • Battery Voltage8.1 V to 12.6 V
  • Battery LifeMore than 800 cycles
  • Cycle Lifetime

    Proactive mode: 1.5 days,

    Standby mode: 11 days

  • Battery WeightApprox. 185 g (0.4 lb.)

Approval

  • EMC

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    *CE and RCM certifications are only for the device sold in the European region.

  • RF

    CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)

    *CE certification is only for the device sold in the European region.

  • Safety

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    LOA: IEC/EN 60950-1,

    *CE and LOA certifications are only for the device sold in the European region.

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006,

    *CE certification is only for the device sold in the European region.

  • ProtectionIP67: IEC 60529-2013
