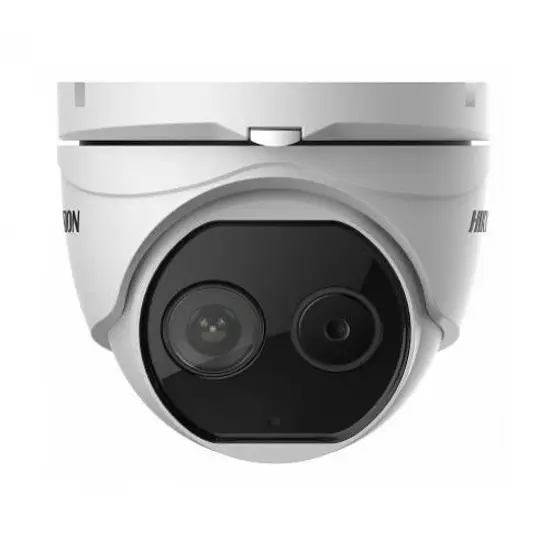

Hikvision DS-2TD1217-3/V1 3mm

$1,556.10

11 products sold in last 4 hours
Selling fast! Over 11 people have in their cart
Thermal & Optical Network Turret Camera 3mm
22 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 114-056 Categories: , Brand:

Thermal & Optical Network Turret Camera – DeepInView Series

Hikvision DS-2TD1217-2/V1 Thermal & Optical Network Turret Camera equipped with built-in GPU which support intelligent behaviour analysis algorithm can realize high precision VCA detection and real-time alarm. It is applied to fire-prevention purposes in indoor space such as an engine room, ATM, conference room, warehouse, museum, train station, gem, power station, and so on. The pre-alarm system helps you discover unexpected events immediately and protects you from property loss.

Smart Function (Thermal Imaging)

  • Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mK (25°C), F#=1.1
  • Powerful behaviour analysis function, based on deep learning algorithm: Line Crossing, Intrusion, Region Entrance & Exit
  • Reliable temperature exception alarm function
  • An advanced fire detection algorithm
  • Bi-spectrum image fusion, picture in picture preview

Thermal Imaging Module Function

  • 160 × 120 (the resolution of the output image is 320 × 240) resolution sensor, high sensitivity sensor, support contrast adjustment
  • Shutter adjustment in various modes
  • 3D DNR, 15 palettes of colour adjustable, image detail enhancement
Thermal Module
Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution: 160 × 120 (the resolution of output image is 320 × 240)
Detector Pitch: 17um
Response Wavebond: 8um to 14um
NETD: less than 40 mK (25°C), F#=1.1
Lens (focal length): 6.2mm
MRAD: 2.83 mrad
Field of View: 25.0° × 18.7° (H × V)
Min. Focusing Distance: 0.6m
F number: F1.1
Optical Camera
Image Sensor: 1/2.7” Progressive Scan CMOS
Max. Image Resolution: 1920 × 1080
Min. Illumination: Color: 0.002 lux @ (F1.2 , AGC On )
B/W : 0.0002 lux @ (F1.2 , AGC On )
Focal Length: 6 mm
Field of View: 53° × 30°(H × V)
WDR: 120dB
Shutter Speed: 1 to 1/100,000s
Day & Night: IR Cut Filter with Auto Switch
Image Function
Bi-spectrum Image Fusion: Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture: Combins details of thermal and optical image PIP, overlay thermal image on optical image
Smart Function
VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 8 VCA
rules
Temperature Measurement: Support 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line)
Temperature Range: -20 ° C to 150 ° C (-4 ° C to 302 ° F)
Temperature Accuracy: ±8 ° C (14.4 ° F)
Fire Detection: Support 10 fire points
Infrared
IR Distance: Up to 15 m
IR IntenSity and Angle: Auto Adjust
Network
Main Stream: Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) Thermal: 50fps (160 × 120 (the resolution of output image is 320 × 240))
Sub Stream: Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144) Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120) Thermal: 50fps (160 × 120 (the resolution of output image is 320 × 240))
Video Compression: H.265/H.264/MJPEG, H.265+, H.264+ encoding with Baseline/Main/High Profile
Audio Compression: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols: IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,I
GMP,ICMP,DHCP, PPPoE, Bonjour
Simultaneous live view: Up to 20-ch
User/Host Level: Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control,
IP address filtering
Integration
Reset: 1 Reset Button
Alarm Input: 1-ch Input (0-5V DC)
Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
Alarm Output: 1-ch relay outputs, alarm response actions configurable
Audio Input: 1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10%
Audio Output: Linear Level; Impedance: 600Ω
Onboard Storage: Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recording
Ethernet: 1 RJ45 10M/100M Self-adaptive Ethernet interface, 1 RS-485 interface
Analog Video Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC
Application Programming: Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
Client: iVMS-4200
Web Browser: IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)
General
Power: 12 VDC± 20%, two-core terminal block, PoE (802.3af, class 3)
Power Consumption: 12 VDC ± 20%: 0.7 A, max. 8W, PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8.5W
Menu Language: English
Working Temperature/ Humidity: -30 °C to 60 °C (-22 °F to 140 °F), 95% or less
Protection Level: IP67 Standard, TVS 6000V Lightning protection, surge protection, voltage transient protection
Dimensions: 134.2 mm × 123.9 mm × 107.7 mm (5.28 ” × 4.87″ × 4.24 “)
Weight: 800 g (1.76lb)
Smart Functions Range
Lens (focal length): 6.2mm
VCA range (Vehicles): 126m
VCA range (humans): 42m
Temperature measurement (Object:2*2m): 132m
Temperature measurement (Object:1*1m): 66m
Fire Detection (Object:2× 2 m): 360m
Fire Detection (Object:1× 1 m): 180m
Wide Range Coverage
Detection range (Vehicles): 559m
Detection range (Humans): 182m
Recognition range (Vehicles): 140m
Recognition range (Humans): 46m
Identification range (Vehicles): 70m
Identification range (Humans): 23m
