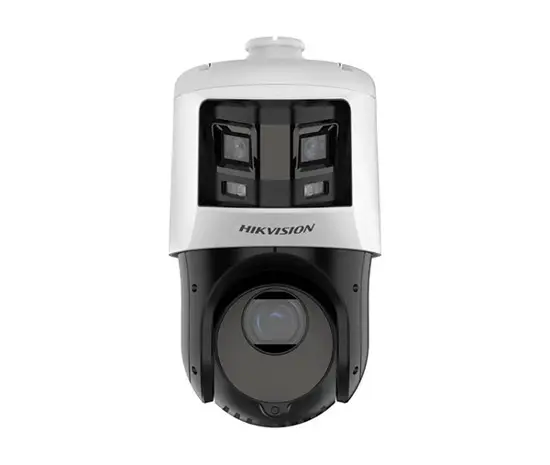

Hikvision DS-2SE4C425MWG-E/26(F0)

TandemVu 6+4MP 25X ColorVu & IR Panoramic & PTZ Camera

• Captures a large area and great details at the same time
• High quality panoramic imaging with 6MP resolution and details imaging with 4MP
• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
• Secures an expansive area with 25× optical zoom and 16× digital zoom
• Expansive night view with up to 100 m IR distance & 30 m white light
• Supports 12V DC & PoE+
• Focuses on human and vehicle targets classification based on deep learning

Camera

• Image Sensor[Bullet channel]: 1/2.5″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS
• Max. Resolution[Bullet channel] 3632 × 1632, [PTZ channel] 2560 × 1440
• Min. Illumination

  [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

  [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

• Shutter Speed1 s to 1/30,000 s
• Day & NightICR
• Zoom[PTZ channel] 25 × optical, 16 × digital
• Slow Shutteryes

Lens

• Focal Length[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
• FOV

  [Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°;

  [PTZ channel]:

  Horizontal field of view: 55° to 2.4° (wide-tele),

  Vertical field of view: 33° to 1.4° (wide-tele),

  Diagonal field of view: 61.5° to 2.8° (wide-tele)

• Focussemi-auto||manual||auto
• Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.6
• Zoom Speed[PTZ channel]: approx. 3.6 s

Illuminator

• Supplement Light Type[PTZ channel]: IR; [Bullet channel]: White Light
• Supplement Light Range[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
• Smart Supplement LightYes

PTZ

• Movement Range (Pan)360°
• Movement Range (Tilt)-15° to 90° (auto flip)
• Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
• Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Panyes
• Presets300
• Preset Freezingyes
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans
• Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
• 3D Positioningyes
• PTZ Status Displayyes
• Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
• Power-Off Memoryyes

Video

• Main Stream

  [Bullet channel]

  50 Hz：25 fps（3632 × 1632，3680 × 1656）

  60 Hz：30 fps（3632 × 1632，3680 × 1656）

  [PTZ channel]

  50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

  60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

• Sub-Stream

  [Bullet channel]

  50 Hz：25 fps（1200 × 536，960 × 432）

  60 Hz：30 fps（1200 × 536，960 × 432）

  [PTZ channel]

  50 Hz：25 fps（704 × 576，640 × 480，352 × 288）

  60 Hz：30 fps（704 × 480，640 × 480，352 × 240）

• Third Stream

  [Bullet channel]

  No

  [PTZ channel]

  50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288）

  60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）

• Video CompressionH.265||H.264||MJPEG
• Video Bit Rate32 kbps to 16384 kbps
• H.264 Typebaseline profile||main profile||high profile
• H.265 Typemain profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)8 fixed regions for each stream

Audio

• Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
• Audio Bit RateMP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
• Audio Sampling RateMP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps , MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps
• Environment Noise Filteringyes

Network

• ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets
• Simultaneous Live View20
• APIISAPI,SDK,ISUP,ONVIF
• User/Host32
• SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
• Network StorageNAS (NFS, SMB/ CIFS)|| ANR
• ClientiVMS-4200||Hik-Connect
• Web BrowserIE11+,Chrome57+,Firefox52+,Safari12+,Edge79.0.309.65+


• Image Parameters SwitchYes
• Image Settingssharpness, saturation, brightness, contrast
• Day/Night Switchday, night, auto, scheduled-switch
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• DefogDigital defog
• Image StabilizationEIS
• Image EnhancementBLC,HLC,3D DNR
• Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
• Regional FocusYes
• Regional ExposureYes

Interface

• Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
• On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
• Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
• Alarm1 alarm input, 1 alarm output
• Resetyes

Event

• Basic Event[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)
• Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,and PTZ actions (such as preset, patrol scan, pattern scan)
• Smart LinkagePanorama Linkage

Deep Learning Function

• Face Capture

  Detects up to 5 faces simultaneously,

  Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

General

• Power12VDC, PoE+
• DimensionØ 166 mm × 375 mm (Ø 6.5″ × 14.7″)
• WeightApprox. 2.4 kg (13.2 lb.)
• MaterialADC12
• Operating Condition-30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
• General Functionmirror,watermark,password protection
• DemistDemist by heating the glass
• Power Consumption And CurrentMax. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light

Approval

• ProtectionIP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
