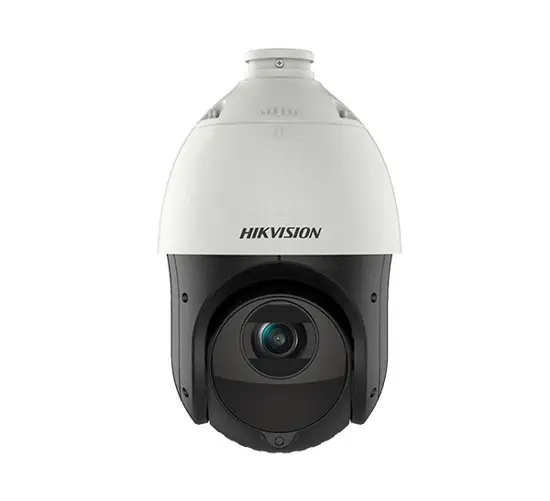

Hikvision DS-2DE4425IW-DE(T5) 4MP PTZ 25X

4MP 25X Powered by DarkFighter IR Network Speed Dome

• Focuses on human and vehicle targets classification based on deep learning
• Supports face capture. Up to 5 faces captured at the same time
• 1/2.8″ progressive scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• 25× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 100 m IR distance
• Supports H.265+/H.265 video compression

Camera

• Image Sensor1/2.8″ progressive scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed1 s to 1/30,000 s
• Slow Shutteryes
• Day & NightIR cut filter
• Zoom25x optical, 16x digital

Lens

• FocusAuto, semi-auto, manual
• ApertureMax. F1.6
• Zoom SpeedApprox. 3.6 s
• Focal Length4.8 mm to 120 mm
• FOV

  Horizontal field of view: 55° to 2.4° (wide-tele),

  Vertical field of view: 33° to 1.4° (wide-tele),

  Diagonal field of view: 61.5° to 2.8° (wide-tele)

Illuminator

• Supplement Light TypeIR
• Supplement Light RangeIR Distance: up to 100 m

PTZ

• Proportional PanYes
• Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, auxiliary output
• Movement Range (Pan)360°
• Movement Range (Tilt)-15° to 90° (auto flip)
• Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
• Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans
• Power-Off Memoryyes
• 3D Positioningyes
• PTZ Status Displayyes
• Preset Freezingyes

Video

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264/MJPEG

• Region Of Interest (ROI)8 fixed regions for each stream
• Main Stream

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video Bit Rate32 kbps to 16384 kbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding

Audio

• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise FilteringYes

Network

• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users, 3 user levels: administrator, operator, and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
• ClientiVMS-4200, HikCentral Pro, Hik-Connect
• Web BrowserChrome 57.0+, Firefox 52.0+, Safari 11+, IE11


• Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR> 52 dB
• DefogDigital defog
• Image StabilizationEIS
• Image EnhancementBLC, HLC, 3D DNR
• Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
• Regional FocusYes
• Regional ExposureYes

Interface

• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Alarm1 input, 1 output
• Audio

  1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;

  1 output (line out), line level, output impedance: 600 Ω

• ResetYes

Event

• Basic EventMotion detection, video tampering alarm, exception, alarm input and output
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

• Face Capture

  Detects up to 5 faces simultaneously.

  Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face

• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

General

• Power

  12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR;

  PoE (802.3at)

• Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
• DemistYes
• MaterialADC12
• DimensionsØ 164.5 mm × 290 mm (Ø 6.48″ × 11.42″)
• Approx. 2 kg (4.41 lb.)

Approval

• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
