Hikvision DS-2CE78H8T-IT3F 5MP TVI IR Turret 2.8mm

$115.70

19 products sold in last 14 hours
Selling fast! 1 person has in their cart
HIKVISION DS-2CE78H8T-IT3F Turret 5MP 2.8mm
29 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 114-031 Categories: , Brand:

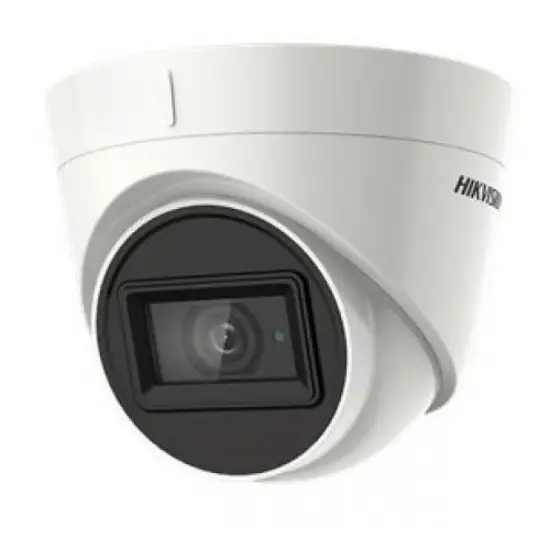

DS-2CE78H8T-IT3F 5 MP Ultra-Low Light TVI Camera

The DS-2CE78H8T-IT3F camera is a high performing 5MP Ultra-Low Light Camera that transmits 5MP in TVI technology over Coax cable.

Great for new installations or retrofit to existing coax cable for up to 500 Meters.

Hikvision DS-2CE78H8T-IT3F TVI Turret Camera (2.8mm lens) 5MP@20fps, 4MP@25fps(P)/30fps(N)(Default), EXIR, 60m IR, Outdoor EXIR Turret, ICR, 0.003 Lux/F1.2, 12 VDC, Smart IR, True WDR,3D DNR, OSD Menu(Up the Coax), IP67, 2.8/3.6/6/8/12mm Lens,Support TVI/AHD/CVI/CVBS video signal output (Plastic / Metal Housing)

Note: This 5MP TVI Camera will work on the previous 3MP DVR’s. However, as default, these are set to 5MP Resolution. If using on the previous Model TVI DVR then please consult your Ness Sale staff to have the resolutions downgraded to 2MP before receiving, otherwise, these will not work on 2/3MP DVR’s.
Note: Compatible with Hikvision 5MP TVI DVR’s, Ness Part No’s 104-647 (4 Channel), 104-648, 104-650 (8 Channel) or 104-649 (16 Channel)

Images are representative only and may vary slightly to the actual item

Mounting Options

  • Wall Mount Bracket – DS-1272ZJ-110-TRS
  • Vertical Pole Mounting – DS-1275ZJ-SUS
  • Corner Mounting – DS-1276ZJ-SUS
  • Junction Box – DS-1280ZJ-S
  • Video Balun – DS-1H18
  • 5 Megapixel high-performance CMOS
  • Analogue HD output, up to 5MP resolution
  • 2.8mm Lens
  • EXIR 2.0, smart IR, up to 60 m IR distance
  • OSD menu, 3D DNR, 130 dB true WDR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67 weatherproof
  • Up the Coax (HIKVISION-C)
Camera
Image Sensor: 5 megapixel progressive scan CMOS
Signal System: PAL/NTSC
Effective Pixels: 2560 (H) × 1944 (V)
Min. Illumination: Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
Lens Mount: M12
Adjustment Range: Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Day& Night: IR cut filter
Video Frame Rate: TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC
Synchronisation: Internal Synchronisation
Menu
3D DNR (Digital Noise Reduction): Level 1 to 9
D/N Mode: Auto/Colour/BW (Black and White)
Auto White Balance: Auto / Manual
BLC: Support
AGC: Support
WDR: Yes
Language: English
Function: Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Out: 1 HD analogue output
General
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC ±25% *You are recommended to use one power adaptor to supply the power for one camera.
Weather Proof: IP67
IR Range: Up to 60m
Communication : Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension: Ø 109.82 mm × 91.03 mm (Ø 4.32″ × 3.6″ )
Weight: Approx. 310 g (0.68 lb.)
