Hikvision DS-2CE59H8T-AVPIT3ZF 5MP TVI Dome 2.7-13.5mm
9 products sold in last 8 hours
Selling fast! Over 20 people have in their cart

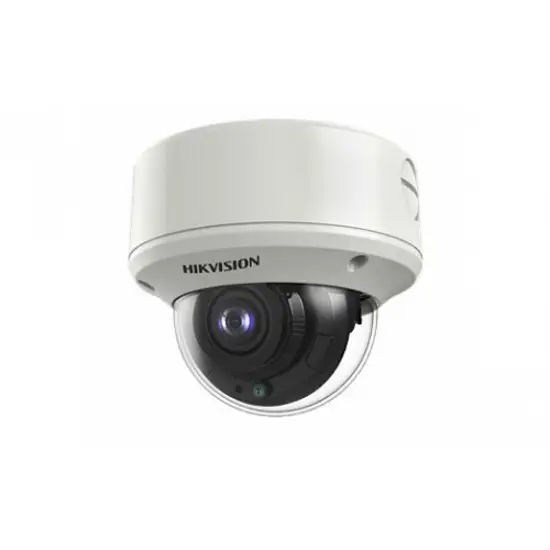

5MP TVI Vandal Dome Camera with 2.7~13.5mm VF Lens
5MP DS-2CE59H8T-AVPIT3ZF WDR EXIR Vandal Dome Camera with 2.7~13.5mm Motorized Lens
The DS-2CE59H8T-AVPIT3ZF camera is a high performing 5MP external TVI Technolgy TRUE WDR Vandal Dome Camera that transmits 5MP in TVI technology over Coax cable.
Great for new installations or retrofit to existing coax cable for up to 500 Meters.
Hikvision DS-2CE59H8T-AVPIT3ZF 5MP@20fps, 4MP@25fps(P)/30fps(N)(Default),EXIR, 60m IR, Auto Focus ,Outdoor Vandal Proof Dome, ICR, 0.003 Lux/F1.2,12 VDC/AC24V, Smart IR,True WDR,3D DNR,OSD Menu(Up the Coax), IP67, 2.7-13.5mm Motorized Vari-focal Lens,Support TVI/AHD/CVI/CVBS video signal output
Mounting Options
- Wall Mount Bracket – DS-1273ZJ-140
- Wall Mount Bracket (with Junction Box – DS-1273ZJ-140B
- In-ceiling mount – DS-1241ZJ
- Vertical pole mount – DS-1275ZJ
- Corner mount – DS-1276ZJ
- Video Balun – DS-1H18
27 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
- 5 Megapixel high-performance CMOS
- Analog HD output, up to 5MP resolution
- 2.7~13.5mm Motorized Lens
- True Day/Night
- OSD menu, DNR, Smart IR
- True WDR, up to 120dB
- EXIR technology, up to 60m IR distance
- IP66 weatherproof
- OSD Up the Coax(HIKVISION-C)
| Camera | |
| Image Sensor: | 5 megapixel progressive scan CMOS |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 2560 (H) × 1944 (V) |
| Min. Illumination: | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens: | 2.7 mm to 13.5 mm motorized vari-focal lens |
| Lens Mount: | φ14 |
| Adjustment Range: | Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355° |
| Day& Night: | IR cut filter |
| Video Frame Rate: | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps; AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps; CVI: 4 MP@25fps, 4 MP@30fps; CVBS: PAL, NTSC |
| Synchronization: | Internal Synchronization |
| Menu | |
| 3D DNR (Digital Noise Reduction): | Level 1 to 9 |
| D/N Mode: | Auto/Color/BW (Black and White) |
| White Balance: | Auto / Manual |
| BLC: | Support |
| AGC: | Support |
| WDR: | Yes |
| Language: | English |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Out: | 1 HD analog output |
| General | |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC |
| Impact Protection: | IK10. |
| Weather Proof: | IP67 |
| IR Range: | Up to 60m |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | Ø 145.2 mm × 124.1 mm ( Ø 7.1″” × 4.9″”) |
| Weight: | Approx. 640 g (1.41 lb.) |
| Video/Audio Input | |
| Audio Input: | 4-ch |
| Video Compression: | H.264 |
| Analog and HD-TVI video input: | 4-ch,BNC interface (1.0Vp-p, 75 Ω) |
| Supported camera types: | 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS |
| IP Video Input: | 2-ch 1080P |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | G.711u |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st channel of audio input) |
| Video/Audio Output | |
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | Mainstream: 1080P / 720P / VGA / WD1 / 4CIF / CIF;Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
| Frame Rate: | Mainstream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate |
| Video Bit Rate: | 32 Kbps-10 Mbps |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | 64kbps |
| Dual Stream: | Support |
| Playback Resolution: | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Synchronous Playback: | 4-ch |
| Network management | |
| Remote connections: | 128 |
| Network protocols: | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnPâ„¢, HTTPS |
| Hard Disk Driver | |
| Interface Type: | 1 SATA Interface |
| Capacity: | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
| USB Interface: | 2 USB 2.0 Interfaces |
| Serial Interface: | 1; standard RS-485 serial interface, half-duplex |
| Alarm Input: | 4-ch |
| Alarm Output: | 1-ch |
| General | |
| Power Supply: | 12V DC |
| Consumption: | ≤ 15W |
| Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working Humidity: | 10% ~ 90% |
| Chassis: | 1U chassis |
| Dimensions: | 315 × 242 × 45mm (12.4 × 9.5 × 1.8 inch) |
| Weight: | ≤ 1.5Kg (3.3lb) |
