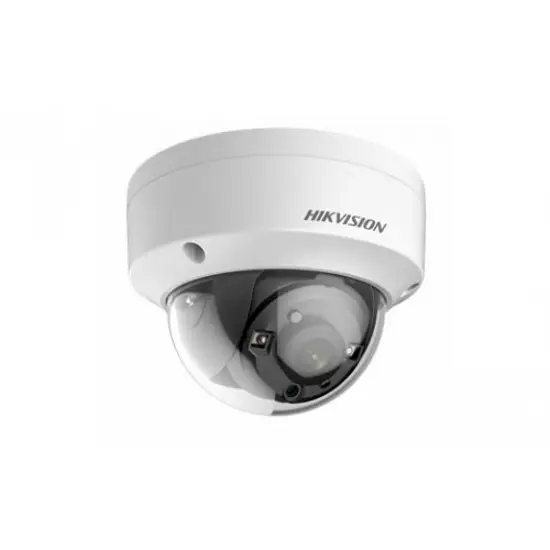

Hikvision DS-2CE57H8T-VPITF 5MP TVI IR Dome 2.8mm
16 products sold in last 8 hours
Selling fast! Over 10 people have in their cart
5MP TVI Vandal Dome Camera with 2.8mm Lens
5MP DS-2CE57H8T-VPITF
TRUE WDR EXIR Vandal Dome Camera with 2.8mm Lens
The DS-2CE57H8T-VPITF camera is a high performing 5MP external TVI Technolgy TRUE WDR Vandal Dome Camera that transmits 5MP in TVI technology over Coax cable.
Great for new installations or retrofit to existing coax cable for up to 500 Meters.
Hikvision DS-2CE57H8T-VPITF 5MP@20fps, 4MP@25fps(P)/30fps(N)(Default), EXIR, 30m IR, Outdoor Vandal Proof Dome, ICR, 0.003 Lux/F1.2, 12 VDC, Smart IR,True WDR,3D DNR,OSD Menu(Up the Coax), IP67, 2.8mm Lens,Support TVI/AHD/CVI/CVBS video signal output.
Mounting Options
- Wall Mount Bracket – DS-1272ZJ-110-TRS
- Vertical Pole Mounting – DS-1275ZJ
- Corner Mounting – DS-1276ZJ
- Junction Box – DS-1280ZJ-XS
- Video Balun – DS-1H18
24 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
- 5 Megapixel high-performance CMOS
- Analog HD output, up to 5MP resolution
- 2.8mm Fixed Lens
- True Day/Night
- OSD menu, DNR, Smart IR
- True WDR, up to 120dB
- EXIR technology, up to 40m IR distance
- IP66 weatherproof
- OSD Up the Coax(HIKVISION-C)
| Camera | |
| Image Sensor: | 5 megapixel progressive scan CMOS |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 2560 (H) × 1944 (V) |
| Min. Illumination: | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens: | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355° |
| Day& Night: | IR cut filter |
| Video Frame Rate: | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps; AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps; CVI: 4 MP@25fps, 4 MP@30fps; CVBS: PAL, NTSC |
| Synchronization: | Internal Synchronization |
| Menu | |
| 3D DNR (Digital Noise Reduction): | Level 1 to 9 |
| D/N Mode: | Auto/Color/BW (Black and White) |
| White Balance: | Auto / Manual |
| BLC: | Support |
| AGC: | Support |
| WDR: | Yes |
| Language: | English |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Out: | 1 HD analog output |
| General | |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. |
| Impact Protection: | IK10. |
| Weather Proof: | IP67 |
| IR Range: | Up to 30m |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | Ø 111 mm × 82.4 mm (Ø 4.4″” × 3.2″” ) |
| Weight: | Approx.500 g (1.10 lb.) |
| Video/Audio Input | |
| Audio Input: | 4-ch |
| Video Compression: | H.264 |
| Analog and HD-TVI video input: | 4-ch,BNC interface (1.0Vp-p, 75 Ω) |
| Supported camera types: | 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS |
| IP Video Input: | 2-ch 1080P |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | G.711u |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st channel of audio input) |
| Video/Audio Output | |
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | Mainstream: 1080P / 720P / VGA / WD1 / 4CIF / CIF;Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
| Frame Rate: | Mainstream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate |
| Video Bit Rate: | 32 Kbps-10 Mbps |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | 64kbps |
| Dual Stream: | Support |
| Playback Resolution: | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Synchronous Playback: | 4-ch |
| Network management | |
| Remote connections: | 128 |
| Network protocols: | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnPâ„¢, HTTPS |
| Hard Disk Driver | |
| Interface Type: | 1 SATA Interface |
| Capacity: | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
| USB Interface: | 2 USB 2.0 Interfaces |
| Serial Interface: | 1; standard RS-485 serial interface, half-duplex |
| Alarm Input: | 4-ch |
| Alarm Output: | 1-ch |
| General | |
| Power Supply: | 12V DC |
| Consumption: | ≤ 15W |
| Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working Humidity: | 10% ~ 90% |
| Chassis: | 1U chassis |
| Dimensions: | 315 × 242 × 45mm (12.4 × 9.5 × 1.8 inch) |
| Weight: | ≤ 1.5Kg (3.3lb) |
