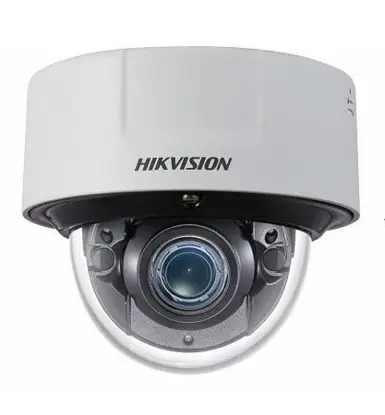

HIKVISION DS-2CD5185G0-IZS

$1,087.20

4K Indoor Moto Varifocal Dome Network Camera

High quality imaging with 8 MP resolution
Clear imaging against strong back light due to true WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Advanced streaming technology enables smooth live view and data self-correction in poor networks
5 streams and up to 5 custom streams to meet a wide variety of applications
6 behavior analyses, 3 exception detection, and face detection
Vandal proof (IK10).

FocusAuto, semi-auto, manual
Lens Type2.8 to 12 mm
FOV2.8 to 12 mm, horizontal FOV 112.4° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47°
ApertureF1.2
Lens MountIntegrated

Max. Resolution3840 × 2160
Main Stream50Hz: 25fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1080 × 720),60Hz: 30fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1080 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video CompressionMain stream: H.265/H.264/H.265+/H.264+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream support
H.265+Main stream support
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking

Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Simultaneous Live ViewUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
Network StoragemicroSD/SDHC/SDXC card (up to 256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, iVMS-5200, Hik-Central
Web BrowserPlug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+,Plug-in free live view: Chrome 45+, Mozilla Firefox52+
Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Day/Night SwitchAuto/Schedule/Day/Night/Triggered by Alarm In
Target CroppingYes
DNR3D DNR
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image EnhancementBLC, HLC, Defog, EIS
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Audio1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono
Alarm1-ch input, 1-ch output (up to 24 VDC 1A or 110 VAC 500 mA)
Video Output1Vp-p composite output (75 Ω/CVBS)
On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M/1000M Ethernet port,1 RS-485 interface ( half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Power Output12 VDC, max. 200mA (supported by 12 VDC, 24 VAC and PoE)

Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
CountingCounting
Face DetectionYes
Exception DetectionScene change detection, audio exception detection, defocus detection

Firmware Version5.5.80
General FunctionOne-key reset, anti-flicker, five streams, custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power SupplyRecommended DC input 12 V, voltage range of 10 to 48 VDC allowed, two-core terminal block,PoE (802.3af, class 3)
Power Consumption And CurrentWith extra load: 12 VDC, 0.8 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3,Without extra load: 12 VDC, 0.6 A, max. 8 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3,“with extra load” means that an extra device is connected to and powered by the camera.
Camera DimensionCamera: Φ140.5 × 122.6 mm (Φ5.5″ × 4.8″),With package: 244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)
Camera WeightCamera: 900 g (1.98 lb.),With package: 1250 g (2.76 lb.)

EMCIC: IC-VoC(ICES-003 Issue 7:2020),
FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B),

KC: KN 301489-1,KN 301489-17,RRA NOTICE 2017-14(2017.12.05),RRA NOTICE 2017-19(2017.12.28),

CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013),

RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015
SafetyCB: IEC 60950-1,
UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014,

LOA: SANS IEC60950-1,

BIS: IS 13252(Part 1)2010+A1:2013+A2:2015
EnvironmentCE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
REACH SVHC: Regulation (EC) No 1907/2006
ProtectionIK10
