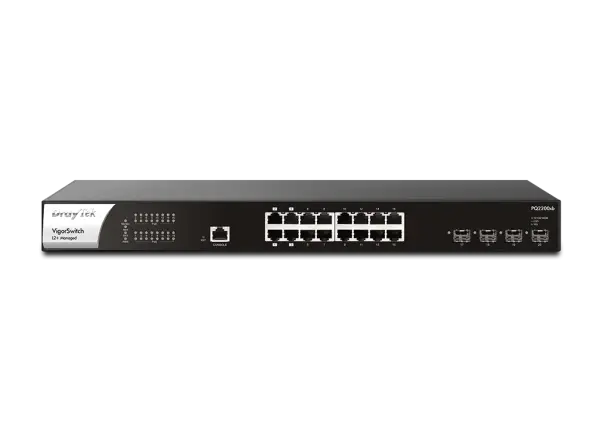

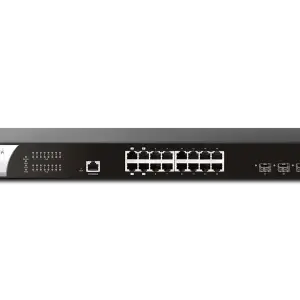

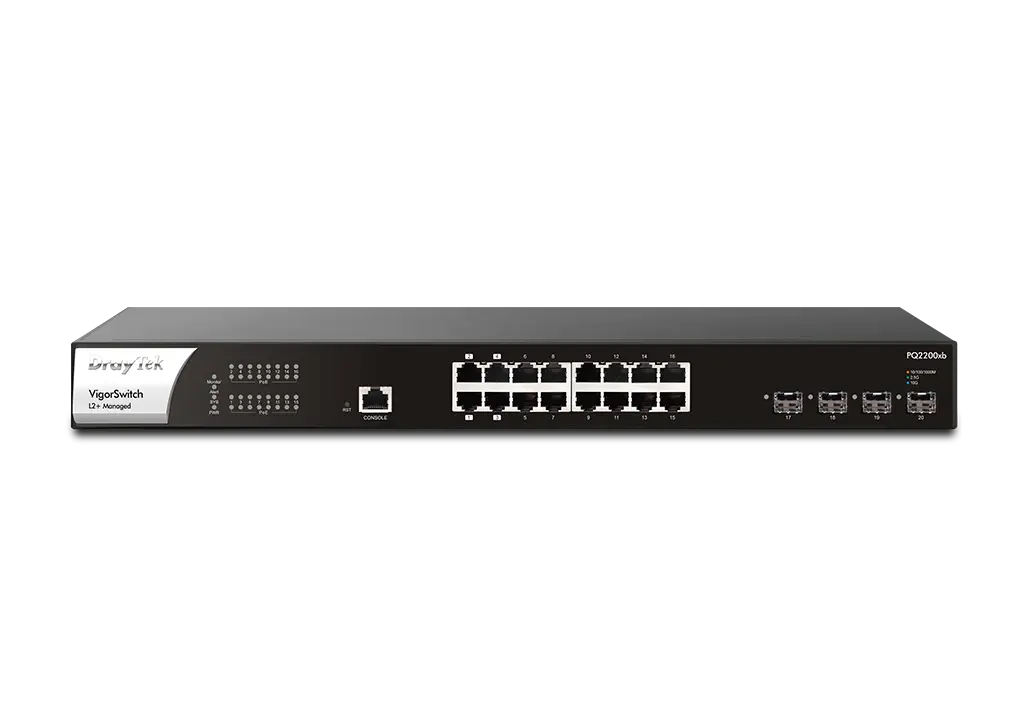

DrayTek VigorSwitch PQ2200xb PoE Switch

$851.08

16 products sold in last 6 hours
Selling fast! Over 12 people have in their cart

PoE++ (400W) L2+ Managed Switch with 4 x 10GbE SFP+ slots, 4 x 2.5GbE ports with PoE++ PSE, 12 x ports with PoE+ PSE, 1 x Console port, Auto Surveillance & Voice VLAN, ONVIF-Friendly and Central Switch Management

28 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DSPQ2200xb Category: Brand:

  • 20 port Layer 2+ Managed PoE Gigabit Switch

    • 4 x Gigabit Ethernet PoE++ Ports (up to 90 Watts per port)
    • 12 x Gigabit Ethernet PoE/PoE+ (802.3af/at), up to 30 Watts per port
    • 4 x 1G/10G SFP+ ports
  • 1 x RJ-45 Console Port

  • PoE power budget of 400 watts

  • PoE Scheduling & Ping watchdog power cycle

  • 160 Gbps switching capacity

  • Port based and 802.1q tagged VLANs (MAC address, and protocol)

  • Voice and Surveillance VLANS with QoS (OUI Mode) providing improved call and video quality

  • ONVIF (Open Network Video Interface Forum) compliant

  • QoS with 8 queues for traffic prioritisation

  • Enterprise-Level security features

    • 802.1x Port Security, ACL, IP Source Guard and DHCP Snooping
    • Access Control (IPv4, IPv6 and MAC address)

  • IP Conflict Prevention to avoid IP conflicts caused by misconfigured or malicious hosts

  • Support IPv6 with MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver

  • Authentication by local database, multiple RADIUS, and TACACS+ servers

  • IEEE 802.3az (Energy-Efficient Ethernet) Compliant

  • Support SNMP v1/v2c/v3, RMON, and Syslog for network monitoring

  • Port Mirroring & Link Aggregation

  • Compliant with Central Switch Management features of DrayTek Vigor devices for simplified network management Learn more

  • Compliant with VigorConnect free software for local network management Learn more

  • Supports VigorACS 3 Central Management Software for remote management

  • 2 years back to base warranty

2.5GbE L2+ Managed Switch with PoE++

DrayTek VigorSwitch PQ2200xb features 16 x 2.5GbE ports for LAN and 4 x 10G SFP+ for uplink/downlink. It has 4 x PoE++ ports providing up to 90W per port and 12 x PoE+ ports. With a total of 400W output, it is ideal for business applications with IoT devices, such as LED lighting, POS (point of sale) computer, sensors, IP cameras, etc.

When configured with WiFi6 VigorAPs (e.g., VigorAP 1060C), VigorSwitch PQ2200xb can bring full WiFi 6 capability and features to LAN clients. Furthermore, it supports advanced Layer 3 features, DHCP Server, and VLAN Routing, to improve network efficiency and ensure that the LAN network continues to work even if the gateway is offline. Therefore, this switch is well placed to be the core switch in most SME/SMB networks.

  1. Power Socket
  2. LED Indicator
  3. Reset Button
  4. Console Port
  1. 4 x PoE++ 2.5GbE Ports
  2. 12 x PoE+ 2.5GbE Ports
  3. 4 x SFP+ Ports

90W PoE++ & 30W PoE+

4 x PoE++ ports & 12x PoE+ports total power budget up to 400W

16 x 2.5GbE Ports

10M/100M/1G/2.5GbE

4 x 10G SFP+ Ports

1G/10G SFP+

160 Gbps

Switching Capacity

Key Features

PoE++ (802.3bt)

Deliver up to 90W over one Ethernet cable. Turn on/off the PoE device periodically with PoE Schedule.

QoS (Quality of Service)

Improve the performance of critical traffic by prioritising it with CoS, DSCP, and IP Precedence tag.

Ping Device Check

Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.

ONVIF-Friendly

Recognise ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more

2.5GbE

Provides higher performance to WiFi 6 AP and other Ethernet devices.

IPv6 Ready

VigorSwitch PQ2200xb supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.

10G SFP+

Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.

Web-Based GUI

Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo

Wire-Speed VLAN Routing

Improve overall network performance by using VigorSwitch PQ2200xb to route the inter-VLAN traffic directly and offload the router.

Multiple Admin Accounts

Multiple Admin accounts with two levels of administrator privilege.

Auto Surveillance & Voice VLAN

Recognise traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritisation.

Central Switch Management

Set up VLANs easily from the router and get a centralised hierarchy view of the switches. Learn more

IP Conflict Prevention

Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more

ONVIF-Friendly

Recognise ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance

onvif topology 2280

Centralised Hierarchical View

The VigorSwitch PQ2200xb automatically detects ONVIF devices and displays the topology of connected IP cameras and NVRs.

Image Viewing

Images filmed by IP cameras can be viewed directly within the VigorSwitch PQ2200xb web UI.

Device Management

Basic configuration/maintenance tasks for ONVIF devices such as remote reboot, factory reset and changing network settings can all be done remotely from the VigorSwitch PQ2200xb web UI.

onvif vlan 2280

ONVIF Snapshot Alert

Locating Non-Responding IP Cameras Made Easy

onvif snapshot

Managing a network of IP cameras across different locations is difficult, as when any of the cameras stop functioning, there is no easy way to detect or revive it. To help with this problem, the VigorSwitch PQ2200xb regularly pings ONVIF IP cameras and takes snapshots from them periodically. If one IP camera stops responding, an email alert is sent with the latest snapshot from the camera.

With PoE VigorSwitch models, the switch can also provide first aid by automatically power cycling the particular port to reboot the camera.

IP Conflict Detection & Prevention

Conflict Detection

The VigorSwitch constantly checks the network environment and notifies the administrator of any IP conflicts.

Conflict Prevention

For a more stable network, the VigorSwitch detects misconfigured or malicious IP hosts and blocks them before damages are done.

switch ipc

Device Check

switch lan device check poe

Ping Check for LAN Devices

A VigorSwitch can continuously ping the LAN devices, and when the device stops responding to the ping, it will instigate a PoE cycle to the associated port (PoE model only) and/or send an email alert to the administrator.

LAN Management

An all-in-one management platform for Vigor devices on the LAN side.

Automatic Device Discovery

Connect a Vigor Switch or AP to the LAN side of the Vigor Router, and the router will auto-discover the device to allow it to be managed.

Provisioning

Basic settings may be done on the Vigor Router, and then provisioned to the managed Vigor Switches or APs.

Monitoring

The Vigor Router provides a centralized view of managed devices, so you can monitor and check the status of Vigor Switches or APs connected.

System Maintenance

Perform factory resets, save/restore configuration backups, or trigger reboots remotely from the Vigor Router’s interface. There is no need to log in to each device’s management page.

FX2120 lan mana

Management Solution

All-in-One Management
mana swmCentral Switch Management
  • Auto-Discovery
  • Provisioning
  • Monitoring
  • Centralised Hierarchy View
  • Reboot PoE Devices Remotely
  • Quick VLAN Configuration
Software Management
vc scenarioVigorConnect (FREE) cloud mana acs3VigorACS 3
  • Auto-Discovery
  • Auto-Provisioning
  • Monitoring
  • Centralised Hierarchy View
  • Alarm
  • Reboot PoE Devices Remotely
  • Scheduled Maintenance
  • Zero Touch Deployment & Provisioning
  • Auto VPN
  • Interface Quality & SLA
  • VoIP Optimization & Monitoring
  • Application Visibility
  • Application-Based SD-WAN Policy
  • Customized Hotspot Page with Multilingual
  • Hotspot Clients Analytics
  • ACS Server Load Balancing / Failover

In-the-Box

VigorSwitch

VigorSwitch PQ2200xb

rack mount kit switch 1

Rack Mount Kit

console cable 1

Console Cord

power core AU

Power Cord

quick start guide

Quick Start Guide

Note :

The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.

Specifications

Interface
LAN Port 16 x 10/100/1000/2500Mbps Ethernet, RJ-45
4 x 1000Mbps/10Gbps SFP+ slot
Console Port 1 x RJ-45
Factory Reset Button 1
PoE
PoE Capable Ports 4 x PoE/PoE+/PoE++ (802.3af/at/bt), up to 90W per port, Type mode A
12 x PoE/PoE+ (802.3af/at), up to 30W per port, Type mode A
PoE Power Budget 400 watts
Power Limit
Scheduled On/Off
Power Cycle on Port Manual, Auto by Ping check timeout
Capacity
Buffer Size 12 Mbit
Switching Capacity 160 Gbps
Forwarding Rate 119.04 Mpps (64 bytes)
MAC Address Table 16k
Jumbo Frame Up to 10KB
L3 Routing Table 6k static route + 512 prefix route
Networking Standards
IP Version IPv4, IPv6
Ethernet Standards 802.3af PoE
802.3at PoE+
802.3bt PoE++
802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.3bz 2.5GBase-T
802.3ae 10GBase-X
802.3x Flow Control
802.3 Auto-Negotiation
802.1q Tag-based VLAN
802.1p Class of Service
802.1d STP
802.1w RSTP
802.1s MSTP
802.3ad LACP
802.1ad QinQ
802.1x Port Access Control
802.1AB LLDP
802.3az EEE
VLAN
Max.Number of VLAN 256
VLAN Type 802.1q Tag-based
MAC-based
Protocol-Based
Management VLAN
Voice VLAN
Surveillance VLAN
802.1x Guest VLAN
Port Isolation
GVRP
Q-in-Q Basic
ONVIF Surveillance
Discovery
Surveillance Topology
Real-Time Video Streaming
ONVIF Device Maintenance Device Info, Reset Factory Default, Time Settings, Reboot
QoS
Number of QoS Queues 8
Queue Scheduling SPQ, WRR
CoS (Class of Service) 802.1p CoS, DSCP, CoS-DSCP, IP Precedence
Rate Limit & Shaping
Security
Access Control List MAC, IPv4, IPv6
Storm Control Broadcast, Unknown Multicast, Unknown Unicast
DoS Defense
802.1x Port Access Control
IP Source Guard
IP Conflict Detection
IP Conflict Prevention
Loop Protection
Dynamic ARP Inspection
DHCP Snooping with Option 82
Link Aggregation
Max. Number of Group 8
Max. Number of Member in Each Group 8
Type Static, LACP
Traffic Load Balancing MAC Address, IP/MAC Address
Multicast
IGMP Snooping v2, v3(BISS)
IGMP Querier
MLD Snooping v1, v2 (Basic)
Max. Number of Multicast Group 256
Group Throttling
Group Filtering
MVR (Multicast VLAN Registration)
Layer 3 Features
Static Route
VLAN Route
DHCP Server
AAA
Authentication Server RADIUS, TACACS+
Port Authorization
Management Account
RADIUS Attribute Assignment User Privilege, VLAN
Accounting
Multiple Server
Management
Web Interface HTTP, HTTPS
Command Line Interface Telnet, SSH v2
OpenVPN Client Certificate-based authentication
User Authentication Local Database, RADIUS, TACACS+
sFlow
SNMP v1, v2c, v3
Private MIB
RMON Group 1, 2, 3, 9
LLDP LLDP-MED, Media Endpoint Discovery Extension
Mail Alert Port Status, Port Speed, System Restart, IP Conflict
Syslog
2-Level Admin Privilege
Multiple Admin Accounts
Managed by Vigor Router SWM
Managed by VigorConnect
Managed by VigorACS 3
Config File Export/Import
Dual Image
SNTP (Simple Network Time Protocol)
Diagnostics Tools Port Mirroring, Ping, Cable Test, Fan Test
Physical
19-inch Rack Mountable  Mouting Kit Included
Power Input AC 100-240V @ 6A
Max. Power Consumption 550 watts
Dimension (mm) 440(W) x 281.3(D) x 44(H)
Weight 4.3 kg (9.0 lb)
Ventilation Variable-speed Fan
Operating Temperature 0 to 50°C
Storage Temperature -20 to 70°C
Operating Humidity 10 to 90% non-condensing
Storage Humidity 5 to 90% non-condensing
