Draytek Vigor2865 LTE Series Router

• Cat.6 4G LTE modem with dual SIM slots (SIM slot 2 for Failover) for FDD & TDD 4G LTE WAN
• Support 4G LTE bands: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40; great coverage in Australia and New Zealand, Cat.6 4G LTE with 300Mbps download and 50Mbps upload speeds
• Multi-WAN with 1 x VDSL2 35b or ADSL2/2+ WAN port, 1 x configurable GbE WAN/LAN port, 1 x USB port , 2 x 4G LTE SIM slots, and 2 x Wi-Fi WANs (Lac model)
• 1 x XDSL port and 1 x configurable GbE WAN/LAN port for Failover, Load Balancing and High Availability mode
• 1 x USB 2.0 port for 3G/4G LTE USB modems, FTP server, network printer or thermometer
• 5 x Gigabit LAN ports with multiple subnets and 60,000 NAT sessions
• 32 x VPN tunnels (including 16 x OpenVPN/ SSL-VPN tunnels) with most security protocols
• Fast VPN throughput, VPN Load-balancing and backup for site-to-site applications
• Hardware Acceleration and Hardware QoS for up to 8k NAT and routing connections, and 940Mbps (Single WAN) or 1.3Gbps (Multi-WAN) Firewall speed

• 16 x VLANs for secure and efficient workgroup management
• IPv6 & IPv4
• Up to 1022 IP addresses and 8 IP subnets
• Integrated IEEE 802.11ac (AC1300) wireless Access Point; dual band; up to 867 Mbps throughput (Lac model)
• High Availability mode
• Object-based SPI Firewall and CSM (Content Security Management) for network security
• Supports VigorACS 2 and VigorACS 3 Central Management Software for remote management
• SD WAN capability when used with VigorACS 3
• Central VPN Management for up to 8 remote Vigor routers Learn more
• Central AP Management for up to 20 Vigor Access Points Learn more
• Central Switch Management for up to 10 VigorSwitches Learn more
• 2 years back to base warranty

Cat.6 4G LTE and VDSL2 35b Supervectoring Security Routers for SMB

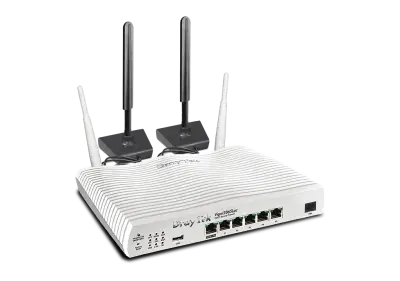

Vigor2865Lac

The Vigor2865 LTE series are VDSL2 35b/ADSL2+ firewall routers with embedded 4G LTE connectivity, making them ideal for SMB where business continuity rely on DSL or Ethernet Internet connectivity, or branch offices at new locations where DSL or Ethernet connection is unavailable.

These routers have 1 x RJ-11 WAN port for VDSL2 (including profile VDSL2 35b Supervectoring)/ADSL2+, 1 x GbE WAN/LAN switchable port, 2 x embedded SIM slots that support Cat.6 LTE (SIM slot 2 for Failover), and 1 x versatile USB port for an additional 4G LTE connection or other applications. These WANs provide robust Load Balancing and Failover functionality.

All models support professional features including QoS, High Availability, Route Policy, SPI Firewall, Content Filtering and much more, and can act as controllers to manage VigorAPs and VigorSwitches on the LAN, or can register to VigorACS for cloud-based remote management. The Vigor2865Lac model supports built-in 802.11ac Wave 2 wireless LAN.

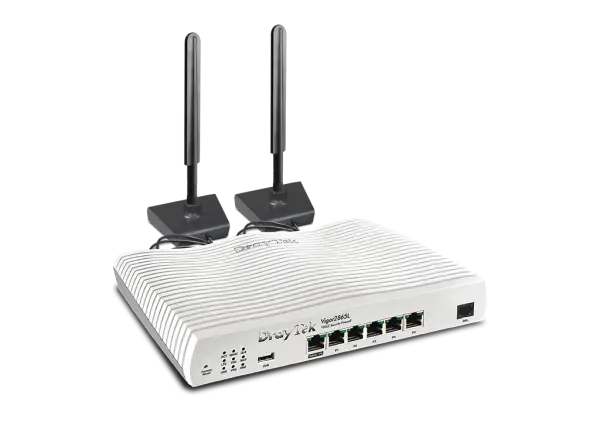

The Vigor2865 LTE series router has 2 LTE antennas. A 1 metre extension lead with a magnetic base allows the antennas to be placed in the best position for optimum 3G/4G reception.

LTE/4G Specification

• LTE/4G category 6
• 300 Mbps downstream and 50Mbps upstream
• 4G LTE FDD Band: 1, 3, 5, 7, 8, 20, 28, 32
• 4G LTE TDD Band: 38, 40
• 3G WCDMA Band: 1, 5, 8

The SMS feature allows status and alerts to be sent by the router, or an IT admin can reboot the router remotely. Learn more

For mission critical applications, the Vigor2865 LTE series routers can be used in High Availability mode to provide uninterrupted network connectivity in case the primary router fails.

The 4G LTE feature makes the Vigor2865 LTE series routers ideal solutions for applications such as:

• Remote locations with no fixed line or NBN coverage
• Quick setup for new branches waiting for NBN connections
• Load Balancing or Failover backup for an existing primary Internet connection which can be any of xDSL/Ethernet/LTE type
• Temporary installations such as disaster recovery, emergency, exhibitions, sporting events, etc., where Internet access is required for a short period
• Provision of Internet access on public transport such as coaches, buses, trains, freighters, ferries, etc.

The Vigor2865 LTE series routers can be rack mounted using a 1RU rack mount bracket on a standard 19” rack or cabinet.

VDSL2 35b

Download speed up to 300 Mbps

Up to 6 WANs for Lac model

Load Balancing; NAT throughput up to 800 Mbps

Cat.6 4G LTE

300Mbps download and 50Mbps upload speeds

32 x VPN tunnels

IPsec VPN throughput up to 300 Mbps

1. Wireless Antenna (Lac model)
2. Reset Button
3. WLAN/WPS Button (Lac model)
4. LED Indicator

1. 1 x USB 2.0 ports for connection to 3G/4G LTE USB modems, FTP server, network printer and thermometer
2. GbE LAN/WAN Switchable Port: 1x GbE RJ-45
3. Fixed LAN Port: 5x GbE RJ-45

1. Fixed WAN Port: 1x RJ-11 for VDSL2 35b/ADSL2+
2. LTE Antenna
3. Power Input
4. Power On/Off Switch
5. 2 x Standard-sized SIM Slots (SIM slot 2 for Failover)

Key Features

Embedded SIM Slot

Provides 4G/LTE Internet access to where fixed lines are not available without the need for a USB dongle.

DrayDDNS

Free DDNS service to access the router using a fixed hostname of your choice. Learn more

Load Balancing

Maximise throughput and reliability by using multiple Internet connections. Learn more

Wireless WAN (Wireless model only)

Get Internet access wirelessly from a Wi-Fi network, a mobile hotspot, or a personal hotspot set up on smartphones. Learn more

35b Supervectoring Modem

Integrated VDSL modem, supporting VDSL2 profile 35b supervectoring.

Hotspot Web Portal

Market your business and communicate with guests by offering hospitality Wi-Fi. Learn more

VPN (Virtual Private Network)

Build a secure and private tunnel from the LAN of the Vigor2865 Series to remote offices and teleworkers over the Internet. Learn more

Bandwidth Management

Prevent one device using all the bandwidth with bandwidth limit policy, session limit policy, and QoS settings.

SSL VPN

SSL VPNs work through firewalls providing secure remote access to any network environment. Learn more

Central AP Management

Use the Vigor2865 router as a wireless controller to maintain and monitor VigorAPs. Learn more

Firewall & Content Filter

Filter web pages by URL keywords or web category to block access to insecure or inappropriate content.

Central Switch Management

Set up VLANs easily from the router and get a centralised hierarchy view of the switches. Learn more

Performance Comparison: Vigor2865 vs. Vigor2862

NAT throughput (1.6 times faster)

800 Mbps

Vigor2865 Series

500 Mbps

Vigor2862 Series

IPSec throughput (3.5 times faster)

300 Mbps

Vigor2865 Series

85 Mbps

Vigor2862 Series

SSL-VPN throughput (2.9 times faster)

130 Mbps

Vigor2865 Series

45 Mbps

Vigor2862 Series

Hardware Acceleration

Without sacrificing traffic control features such as QoS, Bandwidth Limit, WAN Budget, Traffic Graph and Data Flow Monitor, Hardware Acceleration enhances performance for:

• NAT & routing connections
• QoS
• IPsec VPN

Hardware NAT & Routing

With Hardware Acceleration and Hardware QoS enabled, the router supports up to 8k NAT and routing connections, and firewall performance reaching 940Mbps on single WAN and 1.3Gbps combined performance on multi-WANs.

Dual WAN (Ethernet + DSL)

1.6x Faster NAT Performance

1.3 Gbps

with Hardware NAT & Routing

800 Mbps

without Hardware NAT & Routing

Single Ethernet WAN

1.2x Faster NAT Performance

940 Mbps

with Hardware NAT & Routing

800 Mbps

without Hardware NAT & Routing

Hardware QoS

Hardware QoS allows prioritization of applications and services on DrayTek routers, to improve performance of critical applications such as VoIP, conferencing and video streaming, etc. Furthermore, it allows flexible bandwidth allocation to suit business requirements.

Dual WAN (Ethernet + DSL)

1.6x Faster QoS Performance

1.3 Gbps

with Hardware QoS

700 Mbps

with Software QoS

Single Ethernet WAN

1.3x Faster QoS Performance

940 Mbps

with Hardware QoS

700 Mbps

with Software QoS

Hardware IPsec

While the Vigor2865 series already has improved IPsec performance over the previous Vigor2862 series, with Hardware Acceleration enabled, IPsec performance can now reach 800 Mbps. The first 16 tunnels are automatically accelerated on a first come first serve basis. If any drops out, a new tunnel will be put into the accelerator automatically to top off 16 accelerated tunnels.

2.7x Faster IPsec Performance

800 Mbps

with Hardware IPsec

300 Mbps

with Software IPsec

APP QoS

Application QoS allows prioritisation of applications and services on DrayTek routers to improve and enhance critical applications, such as VoIP, conferencing video streaming, etc. It also allow flexible bandwidth allocation to suit business requirements.

VoIP First

VoIP is always a top priority! The default VoIP port, UDP 5060 (configurable) has priority out-of-box with QoS.

Improve Experience for Business-Critical Apps

Select your business critical apps, and easily put them into QoS classes.

Flexible Bandwidth Allocation

Bandwidth will be reserved for high-priority classes, and can be used by low-priority classes when available.

Hotspot Web Portal

Market your business while offering free Wi-Fi

Wi-Fi Marketing

Redirect hotspot guests to the company homepage, online surveys, or display a promotion message.

Grow Customer Mailing List

Require guests to leave contact info or social media accounts before they can use the Internet services.

Various Authentication Types

A variety of login methods are supported to meet your business needs, including Facebook Login, Google Login, SMS PIN, Voucher PIN, and RADIUS.

3rd-Party Service Compliant

Supports external captive portal authentication so you can keep using the Wi-Fi marketing solution you prefer.

Data Quota Management

Bandwidth management is integrated into the Hotspot features to control the bandwidth and session usage of the Hotspot guests.

Management Solution

In-the-Box

Vigor2865L/Lac

2 x LTE Antennas + Socket

2 x Wireless Antennas
(Lac model)

RJ-45 Cable
(Ethernet)

RJ-11 to RJ-11 Cable
(Annex A)

Power Adaptor

Quick Start Guide

Note :

The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
